SXTsq 5 ax

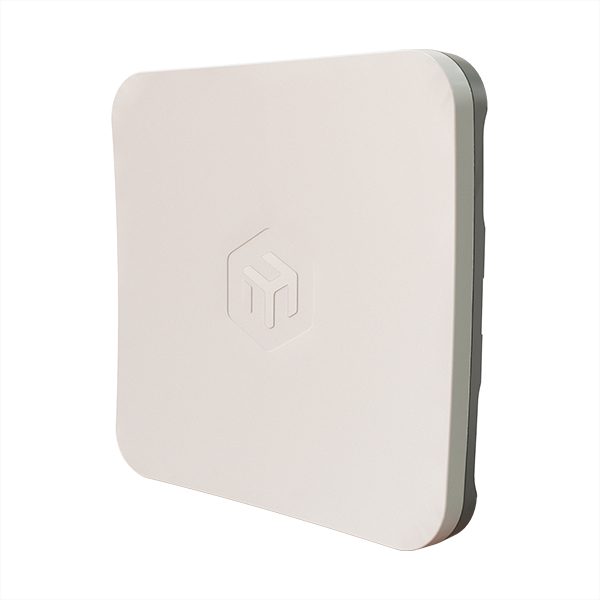

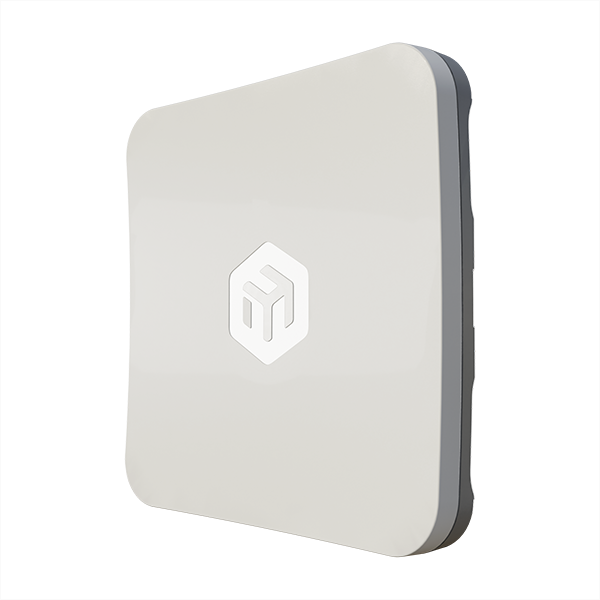

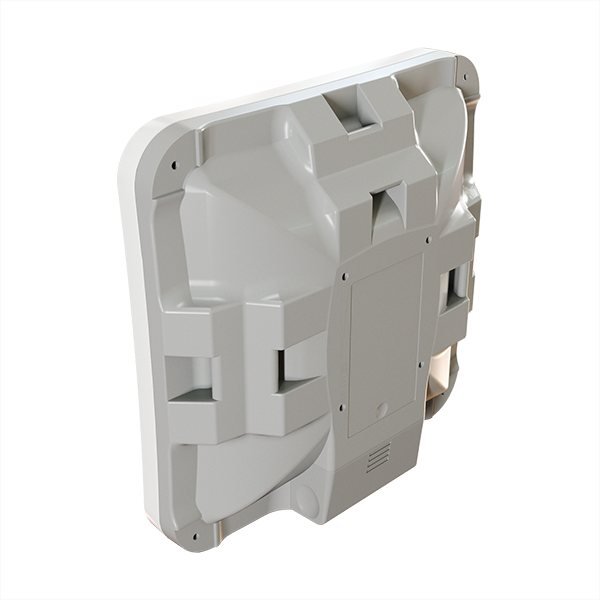

SXTsq 5 ax – Compact Outdoor CPE with Wi-Fi 6 Performance

Upgrade your wireless network with the SXTsq 5 ax, MikroTik’s first Wi-Fi 6 outdoor CPE. Designed in the iconic compact square form factor, this device delivers next-generation speed and efficiency with the power of a modern ARM-based dual-core CPU—all while maintaining the affordability of its Wi-Fi 5 predecessor.

Built for long-range point-to-point links, the SXTsq 5 ax is field-tested to deliver stable performance in high-interference urban areas up to 3 km, and it supports line-of-sight links beyond 10 km. Ideal for outdoor deployments on rooftops, towers, and masts, the rugged weatherproof enclosure features flexible mounting options, including three hose clamp slots for horizontal railing compatibility.

More than just a client device, the SXTsq 5 ax comes with a RouterOS Level 4 license, allowing it to function as a reliable wireless access point. Whether you’re expanding your ISP infrastructure or setting up a remote link, this unit offers exceptional versatility in a compact, space-saving design.

Key Features:

• Wi-Fi 6 support for faster, more efficient wireless connections

• Dual-core ARM CPU for increased performance and stability

• Weatherproof housing for outdoor installations

• Flexible mounting options (supports masts, poles, and rails)

• Long-range support: 3 km+ in urban areas, 10 km+ line-of-sight

• RouterOS Level 4 license – use as CPE or access point

• Same price point as previous Wi-Fi 5 model

•


  Specifications

  Details
  Product code	SXTsq-5axD
  Architecture	ARM 64bit
  CPU	IPQ-5010
  CPU core count	2
  CPU nominal frequency	800 MHz
  RouterOS license	4
  Operating System	RouterOS v7
  Size of RAM	256 MB
  Storage size	128 MB
  Storage type	NAND
  MTBF	Approximately 100’000 hours at 25C
  Tested ambient temperature	-40°C to 70°C

  Powering

  Details
  Number of DC inputs	1 (PoE-IN)
  Max power consumption	6 W
  Cooling type	Passive
  PoE in	Passive PoE
  PoE in input Voltage	12-28 V

  Wireless specifications

  Details
  Wireless 5 GHz Max data rate	1200 Mbit/s
  Wireless 5 GHz number of chains	2
  Wireless 5 GHz standards	802.11a/n/ac/ax
  Antenna gain dBi for 5 GHz	16
  Wireless 5 GHz chip model	QCN-6102
  Wireless 5 GHz generation	Wi-Fi 6

  Ethernet

  Details
  10/100/1000 Ethernet ports	1

  Other

  Details
  CPU temperature monitor	Yes

  Certification & Approvals

  Details
  Certification	CE, FCC, IC, EAC, ROHS
  IP	55

  Wireless specifications

  5 GHz	Transmit (dBm)	Receive Sensitivity
  6MBit/s	24	-96
  54MBit/s	21	-80
  MCS0	24	-96
  MCS7	20	-75
  MCS9	18	-70
  MCS11	16	-67
  2.4 GHz	Transmit (dBm)	Receive Sensitivity
  1MBit/s
  11MBit/s
  6MBit/s
  54MBit/s
  MCS0
  MCS7
  MCS9
  MCS11
