MikroTik wAP ax – Dual-Band Wi-Fi 6 Access Point | Weatherproof & Wall-Mountable
Experience blazing-fast and stable Wi-Fi 6 connectivity with the MikroTik wAP ax — the ultimate weatherproof access point for remote and demanding locations such as rural homes, gas stations, public transport stops, and outdoor installations.
MikroTik wAP ax – Rugged Wi-Fi 6 Access Point for Tough Outdoor & Indoor Deployments
Take your network further with the MikroTik wAP ax – a powerful, weatherproof Wi-Fi 6 access point built to perform in challenging environments like remote homes, rural businesses, bus stops, and gas stations. Trusted globally, the wAP series is known for its durable, discreet design — and the wAP ax continues that legacy with cutting-edge performance.
High-Speed Dual-Band Connectivity, Indoors and Out
Engineered with a dual-chain (2×2 MIMO) setup across both 2.4 GHz and 5 GHz bands, the wAP ax delivers blazing-fast, stable wireless connections even in demanding conditions. Wi-Fi 6 boosts speeds by up to 90% on 2.4 GHz and 40% on 5 GHz, while also improving efficiency, capacity, and battery life for connected devices.
Advanced Security & Seamless Roaming
Featuring support for modern encryption standards like OWE, WPA3-PSK, and WPA3-EAP, the wAP ax provides enterprise-grade security to guard against common threats like brute-force or deauthentication attacks. Deploy multiple units and enjoy fast, seamless roaming across large areas — ideal for campuses, farms, or industrial sites.
Powerful Hardware with Flexible Management
Under the hood, a robust dual-core ARM processor runs RouterOS v7, offering advanced routing, firewall, and VPN capabilities. With integrated support for MikroTik’s new CAPsMAN, managing multiple access points has never been easier — control your entire network from a single interface.
Includes two Gigabit Ethernet ports, with PoE-in support and a standard DC jack, giving you multiple power options to suit any setup.

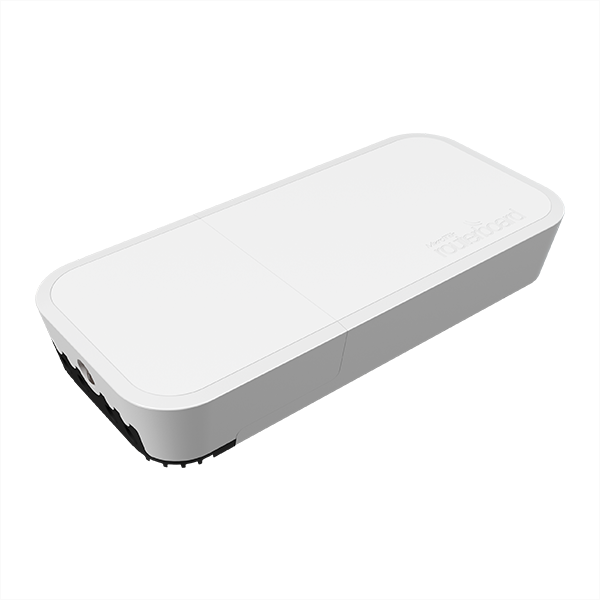

Discreet, Weatherproof, and Built to Last

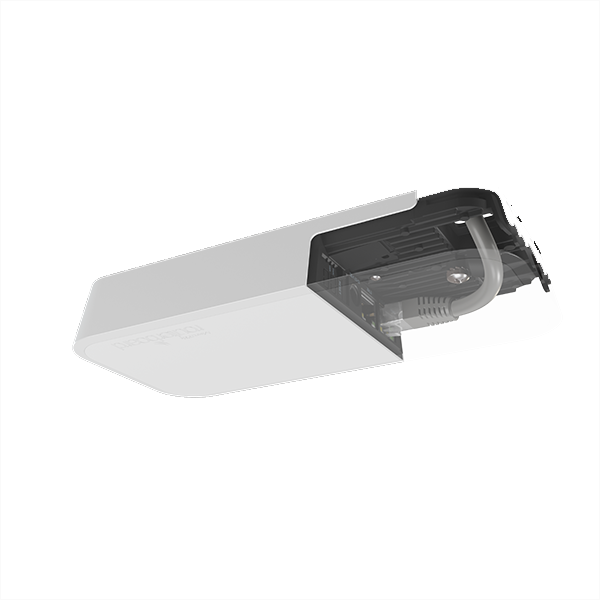

The wAP ax features a minimalist, low-profile design that blends into any setting — public or private — while offering robust protection against the elements and vandalism. Mount it securely on walls or rooftops, with hidden cable routing for a clean and tamper-resistant installation.
Upgrade your network with the MikroTik wAP ax — the ultimate outdoor-ready Wi-Fi 6 solution for reliable, high-performance connectivity anywhere.
Specifications
| Details | |
|---|---|
| Product code | wAPG-5HaxD2HaxD |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6.9 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 7 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3000 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 9 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 23 | -100 |
| 11MBit/s | 23 | -94 |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 17 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -96 |
| 54MBit/s | 20 | -78 |
| MCS0 | 23 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 16 | -67 |
