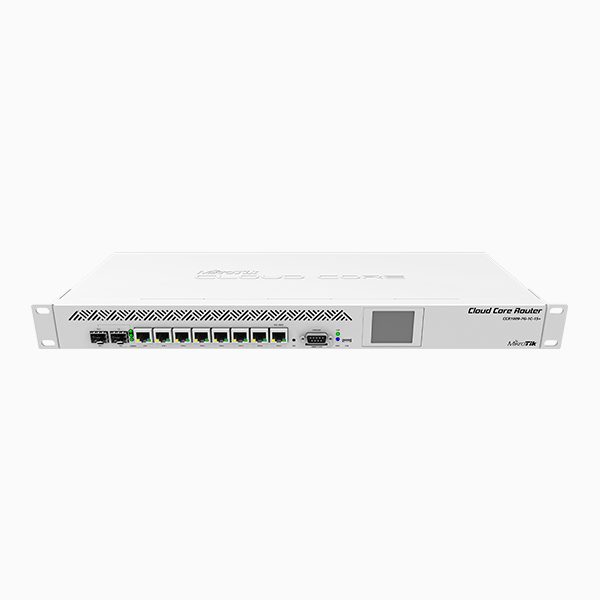

MikroTik-CCR1009-7G-1C-1S+
MikroTik-CCR1009-7G-1C-1S+
1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6
EGP1.00
MikroTik-CCR1009-7G-1C-1S+
MikroTik-CCR1009-7G-1C-1S+ The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years since the first CCR1009 devices were launched.
Important changes
No switch-chip – the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitations from switch-chip ports and utilize the full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature.
100Mbps SFP support – this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput – because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
Specifications:
| Product code | CCR1009-7G-1C-1S+ |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 175 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 39 W |
| Max power consumption without attachments | 34 W |
| Cooling type | 2 |
| PoE in | Passive PoE |
| PoE in input Voltage | 15-57 V |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber
| Details | |
| SFP+ ports | 1 |
Peripherals
| Details | |
| Number of SIM slots | 1 Smart card (Mini-SIM) |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | micro USB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
| brand | MikroTik |
|---|
