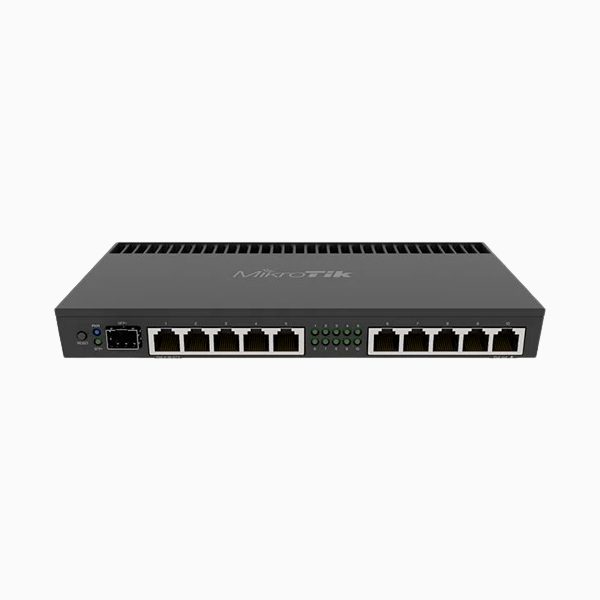

MikroTik RB4011iGS+RM

MikroTik RB4011iGS+RM Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears

RB4011 series – amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface, and IPsec hardware acceleration for a great price!

The RB4011 uses a quad-core Cortex A15 CPU, the same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional-looking solid metal enclosure in matte black.

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space

Specifications

Details
Product code	RB4011iGS+RM
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1400 MHz
Dimensions	228 x 120 x 30 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	12-57 V
Max power consumption	33 W
Max power consumption without attachments	18 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	600 mA

Ethernet

Details
10/100/1000 Ethernet ports	10

Fiber

Details
SFP+ ports	1

Peripherals

Details
Serial console port	RJ45

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

brand	MikroTik

MikroTik RB4011iGS+RM
