MikroTik RB5009UG+S+IN

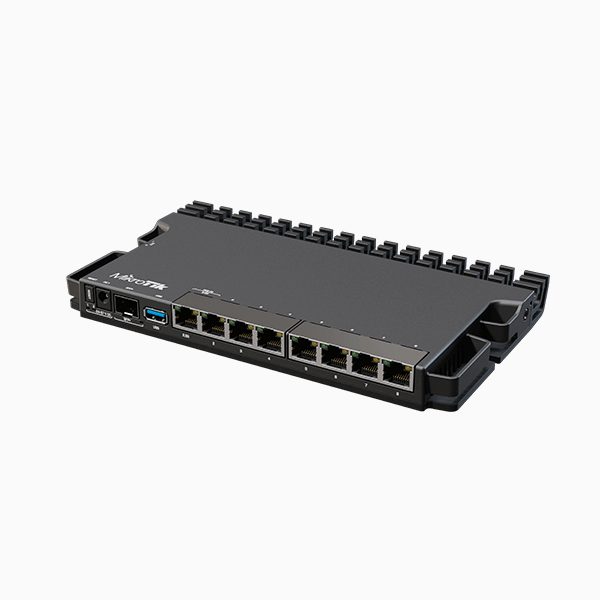

MikroTik RB5009UG+S+IN The ultimate heavy-duty home lab router with USB 3.0, 1G, and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
MikroTik RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB of NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity
[embedyt] https://www.youtube.com/watch?v=c5kBvwGqGws[/embedyt]
Specifications
| Details | |
| Product code | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |
| RouterOS license | 5 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
Powering
| Details | |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 14 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 24-57 V |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
Fiber
| Details | |
| SFP+ ports | 1 |
Peripherals
| Details | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
| Certification | CE, EAC, ROHS |
MikroTik RB5009UG+S+IN DataSheet
| brand | MikroTik |
|---|
