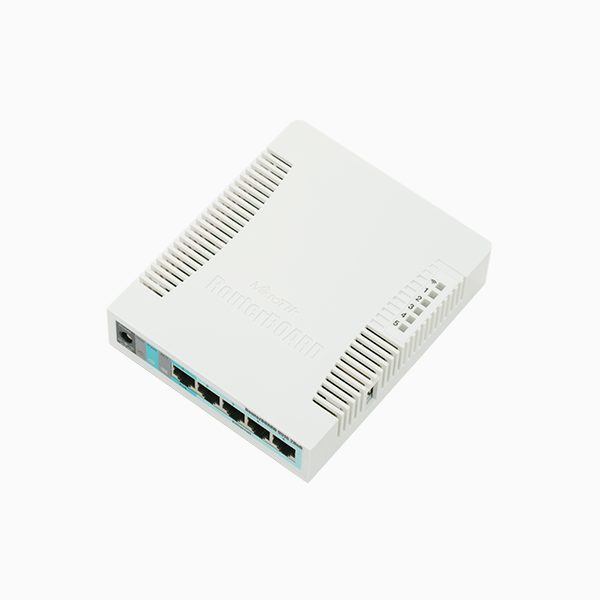

MikroTik RB951G-2HnD

MikroTik RB951G-2HnD 2.4Ghz AP, 5xGigabit Ethernet, USB, 600MHz CPU, 128MB RAM

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports, one USB 2.0 port, and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

In comparison with the previous model RB751G-2HnD, it has a more powerful 600Mhz CPU (instead of 400Mhz), more RAM – 128MB instead of 64MB, same form factor and price. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.

The package contains RouterBOARD 951G-2HnD in a plastic case and power adapter.

Specifications

Details
Product code	RB951G-2HnD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	113x138x29mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-20C .. +50C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9344
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	7 W
PoE in	Passive PoE
PoE in input Voltage	8-30 V

Certification & Approvals

Details
Certification	FCC
IP	IP20

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	25	-80
MCS0	30	-96
MCS7	23	-78

brand	MikroTik

MikroTik RB951G-2HnD
