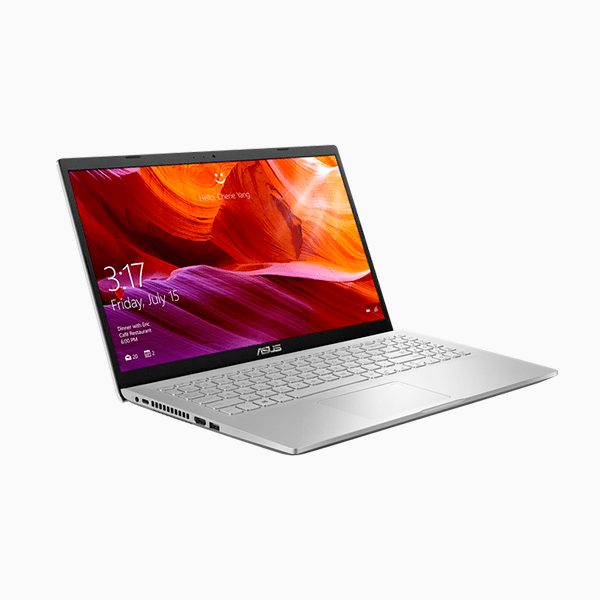

ASUS X509FA Laptop BR949T Intel® Core™ i3-10110U 4GB DDR4 256GB Win 10

ASUS X509FA Laptop BR949T Intel® Core™ i3-10110U 4GB DDR4 256GB Win 10 has a dual-storage design to give you the benefits of superfast data performance and a large storage capacity. Install apps on the SSD for quicker response and loading times, and use the HDD to store large files such as movies, music libraries, and photo albums. ASUS X509 also features Intel^® Optane^™ memory¹ technology so apps load faster and multitasking feels smoother.

ASUS X509 is the entry-level laptop that delivers powerful performance and immersive visuals, whether for work or play. Its NanoEdge display boasts wide 178^° viewing angles and a matte anti-glare coating for a truly engaging experience. Inside, it’s powered by up to an 8th Generation Intel^® Core^™ i7 processor with up to 16GB 2400MHz RAM, and features NVIDIA^® MX250 discrete graphics. A dual-storage design with up to a 512GB PCIe^® SSD and 1TB HDD gives you the perfect combination of large storage capacity and fast data read/write speeds. There’s even Intel Optane^™ memory¹ to help speed things up.

Operating System

Windows 10 Home – ASUS recommends Windows 10 Pro for business
Free Upgrade to Windows 11¹ (when available, see below)

Processor

Intel® Core™ i3-10110U Processor 2.1 GHz (4M Cache, up to 4.1 GHz, 2 cores)

Graphics

Intel® UHD Graphics

Display

15.6-inch, FHD (1920 x 1080) 16:9 aspect ratio, LED Backlit, 220nits, 45% NTSC color gamut, Anti-glare display, Screen-to-body ratio: 83 ％

Memory

4GB DDR4 on board, Total system memory upgradeable to:8GB

Storage

256GB M.2 NVMe™ PCIe® 3.0 SSD

Expansion Slots (includes used)

1x DDR4 SO-DIMM slot
1x M.2 2280 PCIe 3.0×2
1x STD 2.5” SATA HDD

I/O Ports

1x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 1 Type-C
2x USB 2.0 Type-A
1x HDMI 1.4
1x 3.5mm Combo Audio Jack
1x DC-in
Micro SD card reader

Keyboard & Touchpad

Chiclet Keyboard, 1.4mm Key-travel

Camera

VGA camera

Audio

SonicMaster
Audio by ICEpower®
Built-in speaker
Built-in microphone
with Cortana support

Network and Communication

Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth 4.1

Battery

32WHrs, 2S1P, 2-cell Li-ion

Power Supply

ø4.0, 45W AC Adapter, Output: 19V DC, 2.37A, 45W, Input: 100~240V AC 50/60Hz universal

Weight

1.90 kg (4.19 lbs)

Dimensions (W x D x H)

36.00 x 23.50 x 2.29 ~ 2.29 cm (14.17″ x 9.25″ x 0.90″ ~ 0.90″)

Built-in Apps

MyASUS

MyASUS Features

Splendid
Tru2Life
Function key lock
Link to MyASUS

Microsoft Office

1-month trial for new Microsoft 365 customers. Credit card required.

Regulatory Compliance

Energy star

Security

Trusted Platform Module (Firmware TPM)
BIOS Booting User Password Protection
Security Lock
McAfee LiveSafe™ 30-day trial

Disclaimer

¹The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec)
