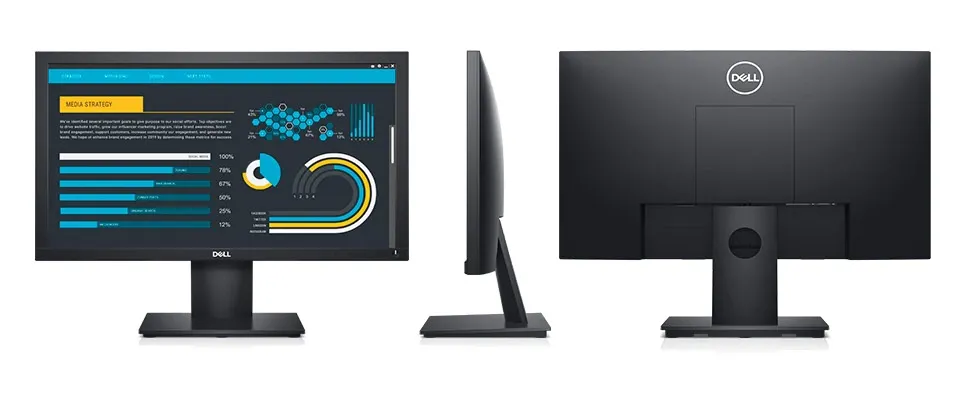

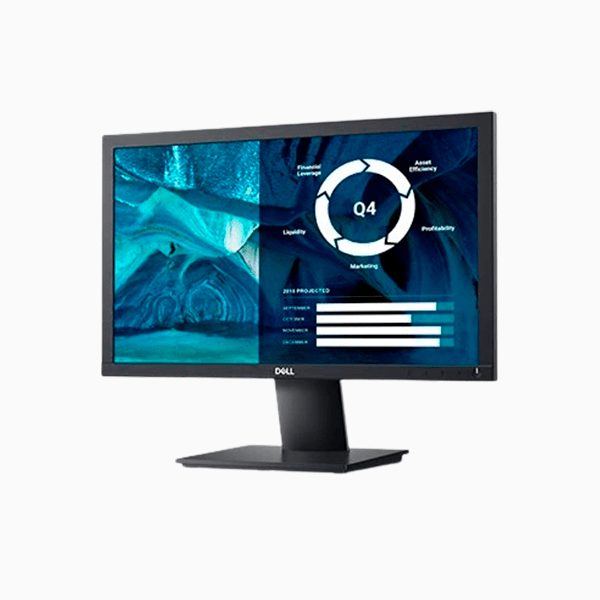

Dell 20 Monitor E2020H-19.5″-1600×900 Resolution

Dell 20 Monitor E2020H-19.5″-1600×900 Resolution Features:

Maximize your workspace: A thin profile¹ and improved cable management create a smaller footprint, lending itself to a clean, uncluttered desk.

Enhanced views: The 1600×900 resolution is ideal for everyday tasks, while ComfortView is ready for extended viewing periods. It reduces up to 60% of harmful blue light emissions.²

Versatile connections: Our E Series monitors accommodate legacy and non-legacy systems with convenient connectivity options like VGA and DP ports. Your workspace will be completely customized to your needs.

Adapts to your needs: Make your workspace your own with VESA-compatible mounts and stands.

Productive at every level: Dell Display Manager’s (DDM) Easy Arrange feature lets you quickly tile and view your applications side by side across one or more connected screens for multitasking efficiency. And with the improved DDM, you’ll get even more preset layouts.

Seamless transitions: The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.

The key to convenience: Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.

More ways to manage: Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.

Display

Diagonal Viewing Size:
49.53 cm (19.5 inches)Horizontal:
432.96 ± 0.96 mm (17.05 inches)Vertical :
238.05 ± 1.71 mm (9.37 inches)Maximum Preset Resolution:
1600 x 900 at 60 HzAspect Ratio :
16:9Pixel Pitch:
0.27 mm x 0.27 mmPixel Per Inch (PPI) :
94Brightness:
250 cd/m² (typical)

Color Support:
Color gamut (typical): 83% (CIE1976) 72% (CIE1931)
Color depth: 16.7 Million

Contrast Ratio :
1000:1 (typical)

Viewing Angle:
160°/170°

Response Time:
5 ms typical (Normal) (gray to gray)

Panel Type:
TN (Twisted Nematic)

Display Screen Coating :
Anti-Glare

Backlight Technology :
LED

ComfortView with Flicker-free screen:
Yes

Dell Display Manager Compatibility:
Yes

Remote Asset Management :
Yes, via Dell Command I Monitor

GSA/TAA:
No

Optional Soundbar:
AC511 – usb powered via PC AE515 Skype for Business Certified

Connectivity

Connectors
1 X VGA
1 X DisplayPort 1.2HDCP Support
DisplayPort HDCP 1.2

Security

Adjustability
Tilt Only (-5° to 21°)Security
Security lock slot (cable lock sold separately)Flat Panel Mount Interface
VESA (100 mm)

Dimensions & Weight

Dimensions (with stand)Height
368.96 mm (14.53 inches)
Width
471.52 mm (18.56 inches)
Depth
171.0 mm (6.73 inches)Weight

Weight (panel only – for VESA mount/ no cables)
2.20 kg (4.85 lb)
Weight (monitor + cables)
2.94 kg (6.48 lb)
Weight (with packaging)
3.94 kg (8.68 lb)

Power

AC input voltage/frequency/current
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 0.7 A (typical)Power Consumption (Operational)
11W (Typ). 14W (Max). 10.7W (Energy Star)Power Consumption Stand by/Sleep
Less than 0.3W

Support Services

Standard Service Plan
3 Years Advanced Exchange Service and Limited Hardware WarrantyOptional Service Plan
Dell ProSupportEnvironmental Compliance
ENERGY STAR®, EPEAT® registered where applicable, TCO Certified Display

In The Box

What’s in the BoxComponents
Monitor with standCables
Power cable
1 X DP Cable (DP to DP)
1 X VGA Cable (EMEA and Japan only)
1 X VESA screw cover
