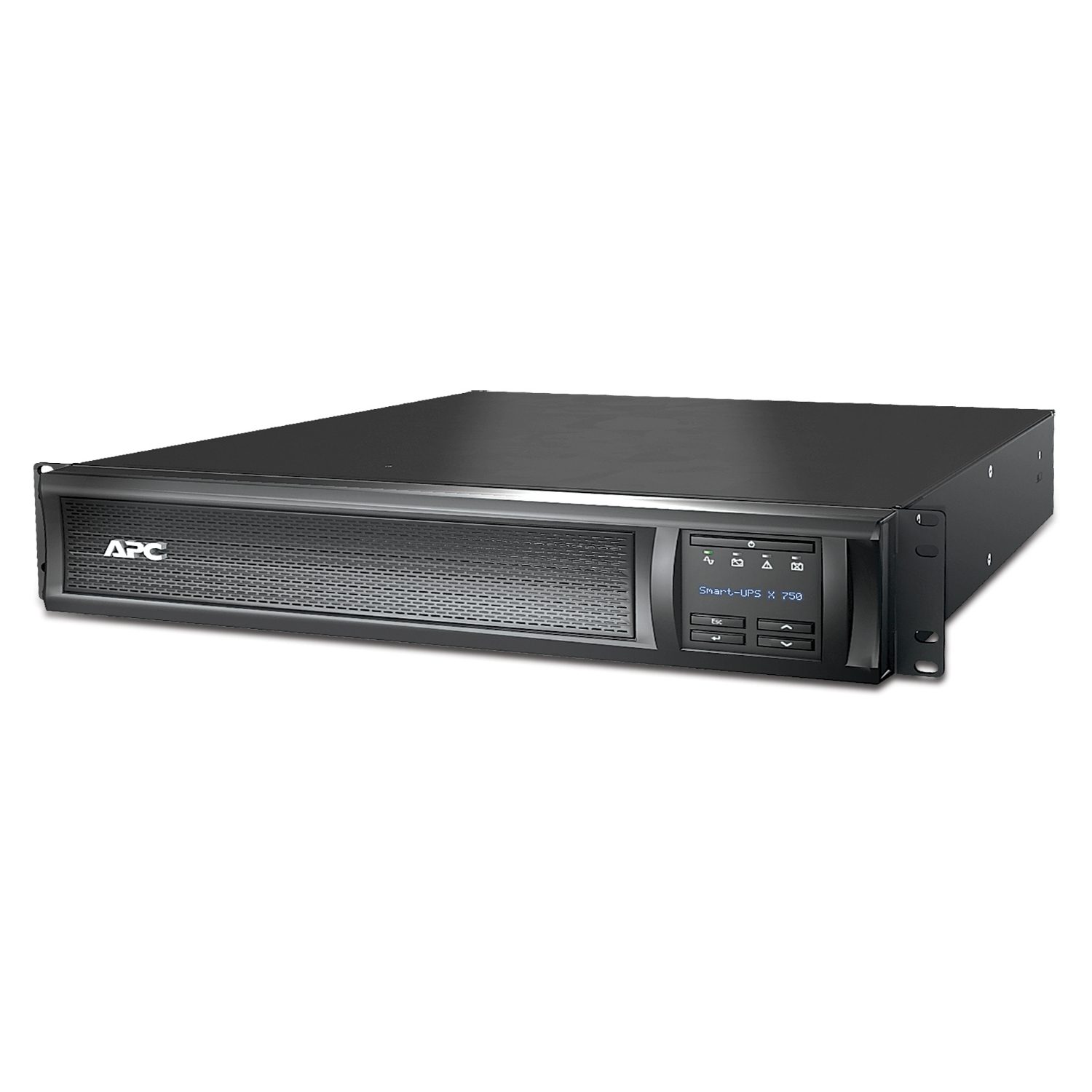

APC Smart-UPS X Line Interactive 750VA Rack/tower-2U-230V SMX750I

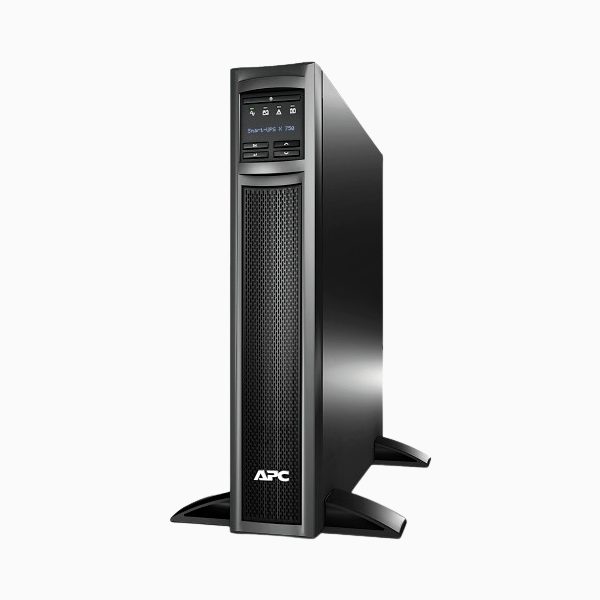

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 750VA/600W premium and reliable line-interactive UPS (APC Smart-UPS X Line Interactive 750VA Rack/tower-2U-230V SMX750I) provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for an unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 490mm (depth) x 89mm (height) x 432mm (width) and weighs 22.05kg. Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters. It conforms to EAC, CE, RCM, and VDE, EN/IEC 62040-1/62040-2.

Overview
Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main
Run time for load W information_stroke Min-max: 60-600 W	14min 14s
Max. Capacity Used information_stroke	100 %
Main Input Voltage	230 V
Other Input Voltage	220 V 240 V
Main Output Voltage	230 V
rated power in W	600 W
rated power in VA	750 VA
Input Connection Type	IEC 320 C14

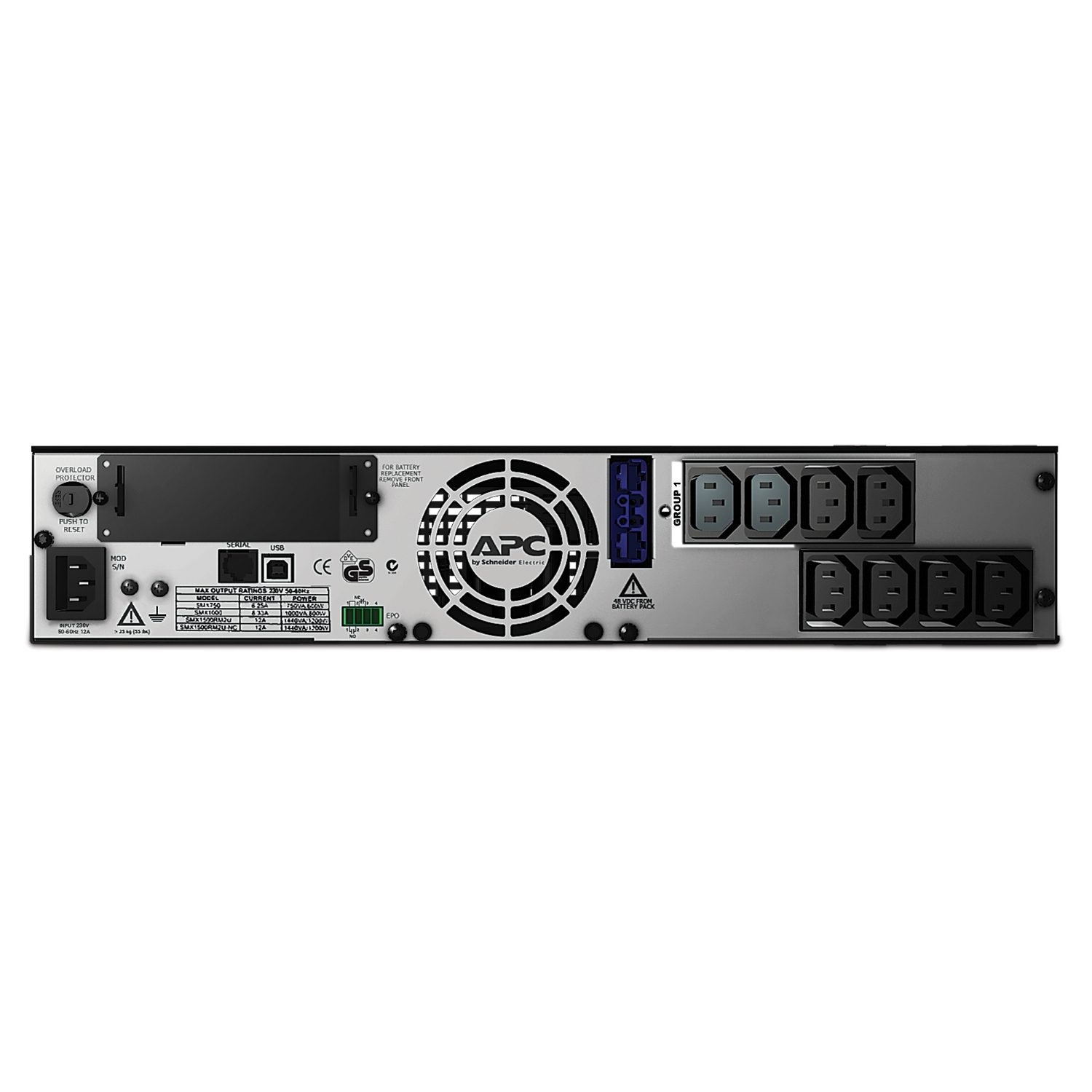

nb of power socket outlets	8 IEC 320 C13 2 IEC Jumpers
number of rack unit	2U
cable length	1.83 m
number of cables	1
battery type	Lead-acid battery
provided equipment	CD with software Documentation CD Installation guide Rack mounting brackets Removable support feet Smart UPS signalling RS-232 cable User manual

General
Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Extended run
redundant	No

Physical
colour	Black
height	8.9 cm
width	43.2 cm
depth	49 cm
net weight	22.05 kg
mounting preference	Lower
mounting mode	Rack-mounted with kit
two post mountable	1
USB compatible	No

Input
input voltage limits	151…302 V adjustable 160…286 V
network frequency	50/60 Hz +/- 3 Hz auto-sensing

Output
harmonic distortion	Less than 5 %
Maximum configurable power in VA	750 VA
Maximum configurable power in W	600 W
UPS type	Line interactive
Wave type	Sine wave
output frequency	50/60 Hz +/- 3 Hz sync to mains

Conformance
product certifications	CE RCM VDE EAC

Environmental
acoustic level	40 dBA
heat dissipation	69 Btu/h
operating altitude	0…10000 ft
ambient air temperature for operation	0…40 °C
ambient air temperature for storage	-15…45 °C
storage altitude	0.00…15240.00 m
relative humidity	0…95 %
storage Relative Humidity	0…95 %

Batteries & Runtime
Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
extended runtime	0
number of battery filled slots	1
number of battery free slots	1
Battery recharge time	3 h
number of battery replacement quantity	1
overcurrent protection	60 A
battery life	3…5 year(s)
Replacement battery	APCRBC116 action_new_window
Battery power in VAH	312 VAh runtime
battery charger power	104 W rated
battery option	SMX48RMBP2U 1 938 VAh SMX48RMBP2U 2 1563 VAh SMX48RMBP2U 3 2188 VAh SMX48RMBP2U 4 2613 VAh SMX48RMBP2U 5 3438 VAh

Communications & Management
alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
control panel	Multifunction LCD status and control console
free slots	1

Surge Protection and Filtering
Surge energy rate	645 J
noise suppression	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Package 1 Weight	26.5 kg
Package 1 Height	24.6 cm
Package 1 Width	58.9 cm
Package 1 Length	62 cm
Number of Units in Package 3	8

SMX750I Datasheet

brand	APC
