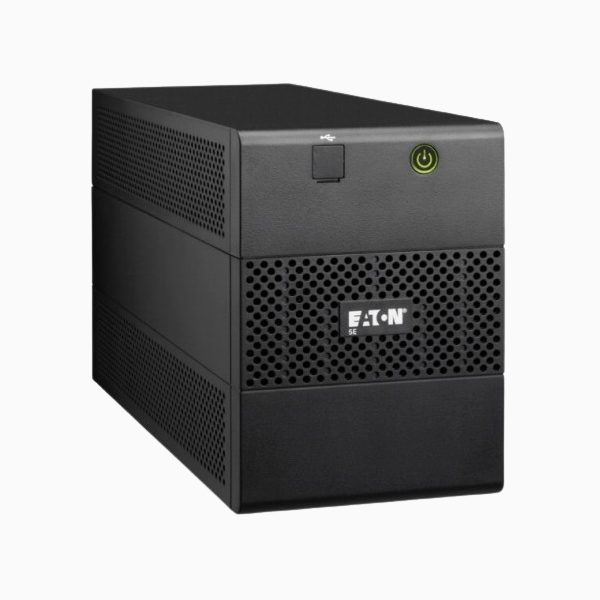

Eaton 5E UPS 1100VA USB 230V 660W 5E1100iUSB

The Eaton 5E UPS 1100VA USB 230V 660W 5E1100iUSB uninterruptible power system (UPS) provides affordable power protection for your personal computer and peripherals. Valuable features such as local country power receptacles, the compact size is ideal for limited office and home working spaces.

The Eaton 5E is an essential line interactive UPS that provides cost effective and reliable power protection against power outages and bad power quality. Thanks to its small size the 5E can be installed easily either in a business environment or at home.

Eaton 5E UPS 1100VA USB 230V 660W 5E1100iUSB – Features

Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR)
Rely on batteries anytime : 5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start)
Avoid back door damages coming through phone lines : 5E USB models are equipped with data line surge protection (Internet/Tel/Fax)
Plug easily any equipment to the UPS (PC, HD TV, internet gateway,…) thanks to IEC and Schuko outlets (on DIN models)
Install 5E anywhere thanks to its small size
Easily manage your UPS from your PC
Ensure peace of mind thanks to a 2-year warranty (automatically included)

General
Topology	Line Interactive with Automatic Voltage Regulation
Configuration	Tower
Style Number	5E1100iUSB
Part Number	5E1100iUSB
Rating (VA/Watts)	1100VA/660W
Dimensions (H x W x D, mm)	330 x 180 x 133
Weight (kg)	9.22
Warranty	2 years

Electrical Input
Connection	(1) IEC-320-C14
Input Voltage Range	170-280V
Nominal Voltage	230 V
Operating Frequency	50/60Hz

Electrical Output
Nominal Voltage	230V
Outlets	(6) IEC-320-C13



Battery Management	Permanent battery recharge, cold start

Communications
Communication Ports	1 USB port
Power Management Software	Eaton UPS Companion software

Environmental & Standards
Audible Noise	<45dB
Operating Temperature	0 to 40°
Performance – Safety – EMC	IEC/EN 62040-2
Safety markings	IEC/EN 62040-1
Approvals	CE, CB report (TUV)
Data Line Protection	Internet/Tel/Fax
