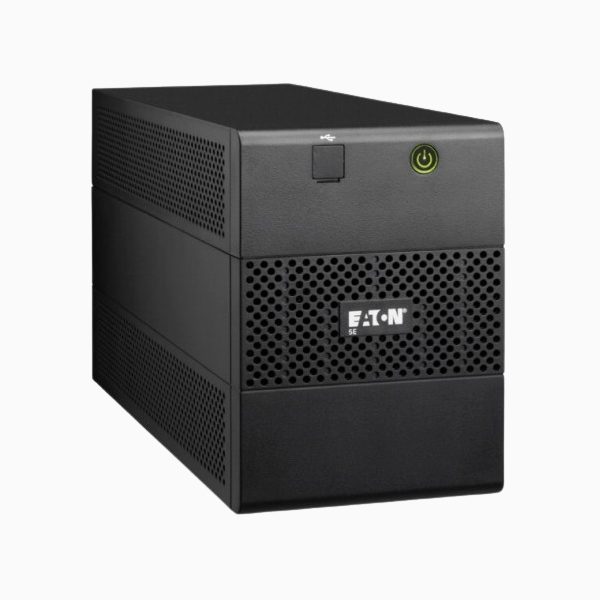

Eaton 5E UPS 650VA USB 230V 5E650iUSB
Eaton 5E UPS 650VA USB 230V 5E650iUSB
Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR)
5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start)
Install 5E anywhere thanks to its small size
Easily manage your UPS from your PC
Compatible with Eaton UPS Companion Software
EGP2,926.00
Eaton 5E UPS 650VA USB 230V 5E650iUSB
The Eaton 5E UPS 650VA USB 230V 5E650iUSB provides affordable power protection for your personal computer and peripherals. Valuable features such as local country power receptacles, the compact size is ideal for limited office and home working spaces.
The Eaton 5E is an essential line interactive UPS that provides cost-effective and reliable power protection against power outages and bad power quality. Thanks to its small size the 5E can be installed easily either in a business environment or at home.
Eaton 5E UPS – Features
- Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR)
- Rely on batteries anytime : 5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start)
- Avoid back door damages coming through phone lines : 5E USB models are equipped with data line surge protection (Internet/Tel/Fax)
- Plug easily any equipment to the UPS (PC, HD TV, internet gateway,…) thanks to IEC and Schuko outlets (on DIN models)
- Install 5E anywhere thanks to its small size
- Easily manage your UPS from your PC
- Ensure peace of mind thanks to a 2-year warranty (automatically included)
| General | |
| Topology | Line Interactive with Automatic Voltage Regulation |
| Configuration | Tower |
| Style Number | 5E650iUSB |
| Part Number | 5E650iUSB |
| Rating (VA/Watts) | 650VA/360W |
| Dimensions (H x W x D, mm) | 288 x 148 x 100 |
| Weight (kg) | 4.64 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 170-280V |
| Nominal Voltage | 230 V |
| Operating Frequency | 50/60Hz |
| Electrical Output | |
| Nominal Voltage | 230V |
| Outlets |
(4) IEC-320-C13
|
| Battery Management | Permanent battery recharge, cold start |
| Communications | |
| Communication Ports | 1 USB port |
| Power Management Software | Eaton UPS Companion software |
| Environmental & Standards | |
| Audible Noise | <40dB |
| Operating Temperature | 0 to 40° |
| Performance – Safety – EMC | IEC/EN 62040-2 |
| Safety markings | IEC/EN 62040-1 |
| Approvals | CE, CB report (TUV) |
| Data Line Protection | Internet/Tel/Fax |
Eaton 5E – Installation and user manual
| brand | Eaton |
|---|
