One Intel® Xeon® E-2300 series processor with up to 8 cores per processor
One Intel® Pentium® processor with up to 2 cores per processor

• Operating System

(Dell Technologies recommends Windows 11 Pro for business)
Canonical^® Ubuntu^® Server LTS
Citrix^® Hypervisor
Microsoft^® Windows Server^® with Hyper-V
RedHat^® Enterprise Linux
SUSE^® Linux Enterprise Server
VMware^® ESXi^®i
For specifications and interoperability details, see

• Chipset

Intel® C256 series

• Memoryⁱ

DIMM Speed
Up to 3200 MT/s
Note: For Pentium® processor, maximum memory speed supported is 2666 MT/s

Memory Type
UDIMM

Memory Module Slots
4 DDR4 DIMM slots

Maximum RAM
UDIMM 128 GB

• Storage

Front Bays
Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB

Storage Controllers

Internal Controllers
PERC H345, PERC H755, HBA355i

External Controllers
HBA355e, 12 Gbps SAS Ext. HBA

Software RAID
S150

Internal Boot
USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB

• Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

• Management

Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
iDRAC RESTful API with Redfish
RACADM CLI
IPMI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI

• Power Supplies

300 W Bronze AC/100-240 V
Cabled power supply

• Ports

Network Options
2 x 1 GbE LOM

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 3.0

Rear Ports
5 x USB 2.0
1 x USB 3.0
1 x VGA
1 x Serial Port
1 x iDRAC dedicated NIC port
2 x NIC port

Internal ports
1 x USB 3.0 (optional)

• Slots

PCIe
2 x PCIe Gen4 slots and 2 x PCIe Gen3 slots

• Chassis

One fan

• Bezel

Security bezel

• Form Factor

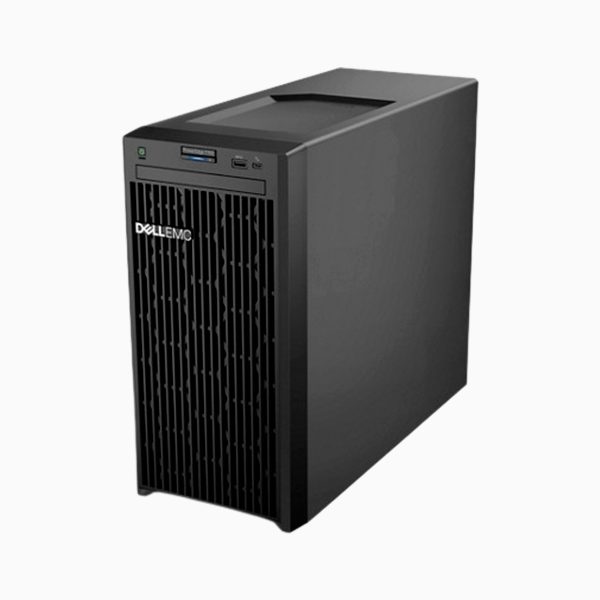

4U mini tower server

• Dimensions & Weight

Height: 14.17 in. (360 mm)
Width: 6.88 in. (175 mm)
Depth with Bezel: 33.48 in. (453.75 mm)
Weight: 25.74 lbs. (11.68 kg)ⁱ

• Rack Support

System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
