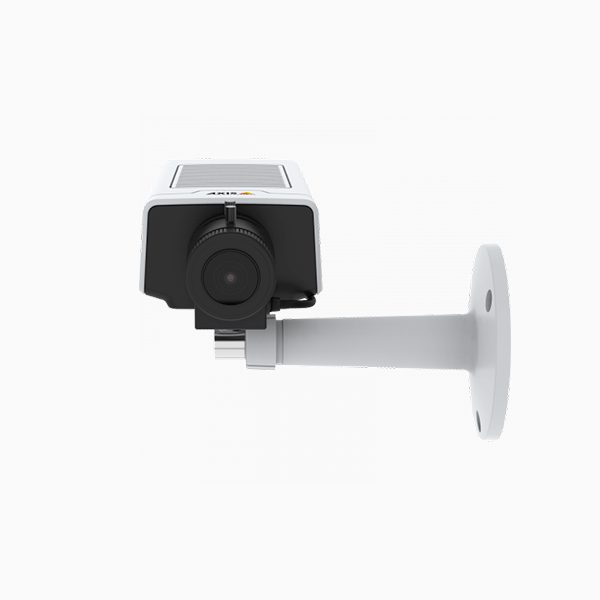

AXIS M1135 Network Camera
2 MP premium affordable surveillance
- Compact and flexible design
- Lightfinder and Forensic WDR
- Built-in microphone for audio recording
- Exchangeable CS mount lens
- Zipstream supporting H.264 and H.265
AXIS M1135 Network Camera
AXIS M1135 is an affordable and compact network camera that delivers superb image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as retail stores, indoor markets and delivery areas.
AXIS M1135 is an affordable, compact network camera that’s easy to install and operate. It supports PoE and redundant DC power, so your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR it delivers true colors and great details in challenging light or near darkness. It includes a CS-mount allowing you to easily change lens to meet your specific requirements. Plus, a built-in microphone allows you to record video with sound. Furthermore, it offers Axis Zipstream with H.264/H.265 to lower bandwidth and storage requirements as well as enhanced security functionality.
> 2 MP / HDTV 1080p at 30 fps
> Lightfinder and Forensic WDR
> Built-in microphone for audio recording
> Exchangeable CS mount lens
> Zipstream supporting H.264 and H.265
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.9 |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | 0.02 lux |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 30 |
| Electronic image stabilization | – |
Lens
| Focal length | 3-10.5 mm |
| Horizontal field of view | 90-33 ° |
| Vertical field of view | 49-19 ° |
| Lens mount | CS |
| Replaceable lens | Yes |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
Audio
| Audio Support | Yes |
Network
| PoE Class | 2 |
| Wireless | – |
Security
| Signed firmware | Yes |
| Secure boot | Yes |
General
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -20 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Designed for repaint | – |
| Sustainability | PVC free |
Power
| Power (max) | 6.5 W |
| Power (average) | 3.8 W |
| DC input voltage | 8-28 V |
