AXIS M2025-LE Network Camera
AXIS M2025-LE Network Camera
Outdoor-ready, IP66- and NEMA 4X-rated
> HDTV 1080p
> Built-in IR illumination
> 115° field of view
> Zipstream
AXIS M2025-LE Network Camera

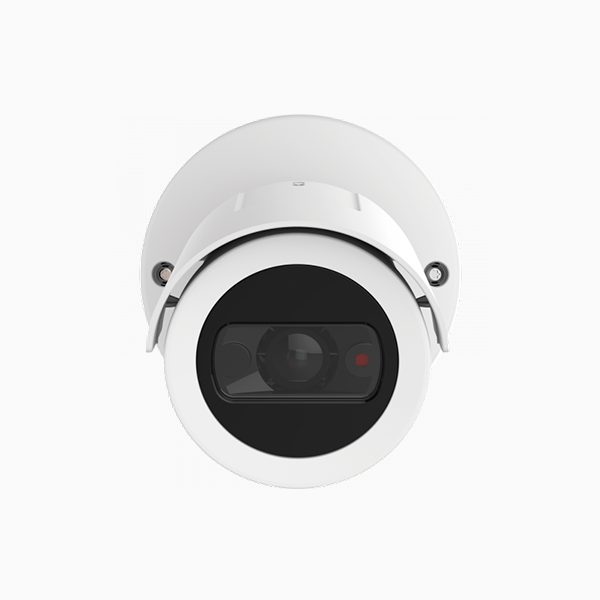

AXIS M2025-LE Network Camera is a small, bullet-style camera delivering high-quality images in HDTV resolution. It has built-in IR
illumination that enables surveillance up to 15 m even at nighttime. The outdoor-ready camera is resistant to rough
weather and the integrated sunshield protects against sun and rain. With a 115° field of view, a single camera gives full
surveillance at low cost, and Axis Corridor Format provides efficient monitoring of corridors and shopping aisles. WDR
– Forensic Capture increases forensic usability by highlighting details in both dark and well-lit areas. The spacious back
box enables secure cable management and easy installation.
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.8 |
| Lightfinder | – |
| Wide dynamic range | Forensic Capture |
| Min illumination/ light sensitivity (Color) | 0.2 lux |
| Min illumination/ light sensitivity (B/W) | 0 lux |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 25/30 |
| Electronic image stabilization | – |
Lens
| Focal length | 2.8 mm |
| Optical zoom | – |
| Horizontal field of view | 115 ° |
| Vertical field of view | 64 ° |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
Network
| PoE Class | 2 |
Security
| Signed firmware | Yes |
| Secure boot | – |
General
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -30 to 50 °C |
| Outdoor Ready | Yes |
| Vandal rating | – |
| IP rating | IP66 |
| Designed for repaint | – |
| Sustainability | PVC free |
Power
| Power (max) | – |
| Power (average) | – |
AXIS M20-LE – Installation Guide
| brand | Axis |
|---|
