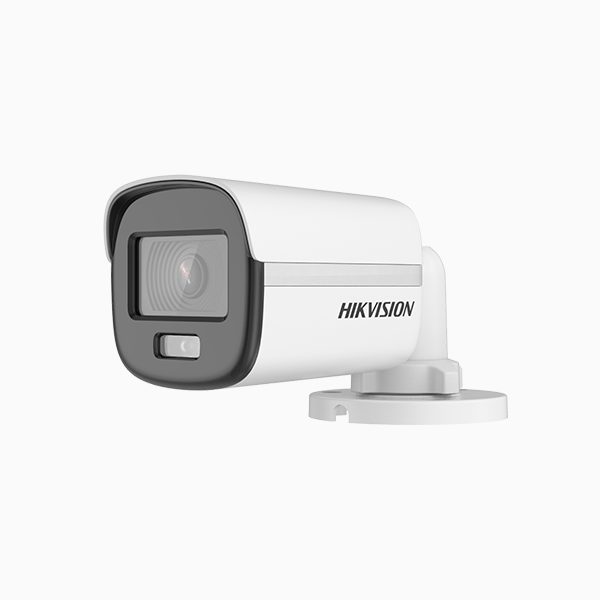

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-PF Specifications:

 High-quality imaging with 2 MP, 1920 × 1080 resolution
 24/7 color imaging with F1.0 aperture
 3D DNR technology delivers clean and sharp images
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 20 m white light distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens MountM12

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: Up to 20 m
• Smart Supplement LightYes


• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness; Mirror;Sharpness; Anti-Banding;AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC;HLC;Global
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AlarmSolid Light Alarm (White Light)

General

• Power

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

  Max. 2.4 W

• MaterialPlastic
• Dimension161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Approx. 229 g (0.50 lb)
• Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

Approval

• ProtectionIP67

The Data Sheet
