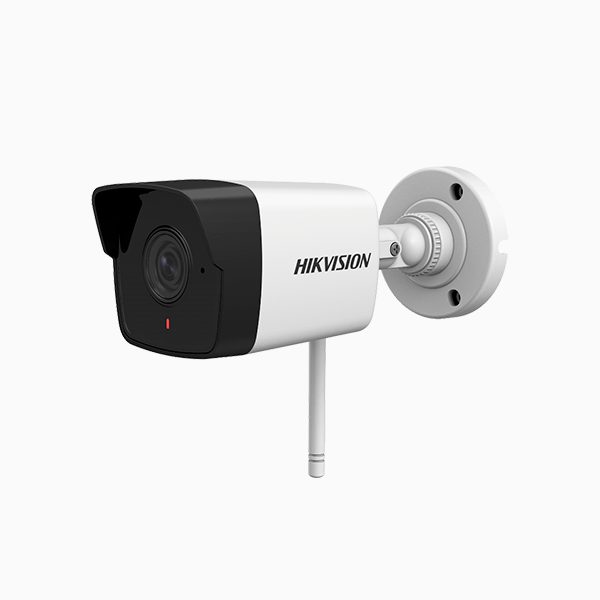

Hikvision 2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic DS-2CV1021G0-IDW

Hikvision 2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic DS-2CV1021G0-IDW Specifications:

Smart Features

• Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
• WDRDWDR
• Day & NightIR Cut Filter

Lens

• ApertureF2.0
• FocusFixed
• FOV

  2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°

  4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°

• Lens MountM12
• Focal Length2.8/4 mm

Network

• Network StorageSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Alarm TriggerMotion detection, illegal login
• ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
• APIISAPI
• Simultaneous Live ViewUp to 6 channels
• User/Host

  Up to 32 users

  3 levels: Administrator, Operator and User

• Client

  Wired network: Hik-Connect, iVMS-4200

  Wi-Fi: iVMS-4200

  *Wi-Fi connection with Hik-Connect directly is not possible.

• Web Browser

  Plug-in required live view: IE8, IE9, IE10, IE11

  Local service: Chrome 57.0+, Firefox 52.0+

• General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
• Firmware VersionV5.5.101

Audio

• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz

Interface

• Reset ButtonYes
• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Audio1 Built-in mic, mono sound


• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 720)

  60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50Hz: 25 fps (640 × 360)

  60Hz: 30 fps (640 × 360)

• Image EnhancementBLC, HLC, 3D DNR
• Day/Night SwitchDay, night, auto, scheduled
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

General

• Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
• Power Consumption And Current12 VDC, 0.4 A, max. 5 W
• MaterialFront cover: metal, back cover: plastic
• Dimensions

  Camera: 177.6 mm × 67.8 mm × 66.2 mm (7″ × 2.7\” × 2.6\”)

  With package: 264 mm × 129 mm × 120 mm (10.4 × 5.1\” × 4.7\”)”

• Camera: approx. 270 g (0.6 lb.)

  With package: approx. 470 g (1 lb.)

Approval

• ProtectionIngress protection: IP66 (IEC 60529-2013)

Compression Standard

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264

• H.264+Main stream supports
• H.265+Main stream supports
• H.264 TypeBaseline Profile/Main Profile
• H.265 TypeBaseline Profile
• Video Bit Rate32 Kbps to 8 Mbps
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

IR

• IR RangeUp to 30 m
• Wavelength850 nm

Wi-Fi (-W)

• Wireless StandardsIEEE 802.11b/g/n
• Frequency Range2.4 GHz to 2.4835 GHz
• Transfer Rates

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Channel Bandwidth20 MHz/40 MHz
• Wireless RangeUp to 80 m (The performance varies based on actual environment.)
• Protocols

  802.11b: CCK, DQPSK, DBPSK

  802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
