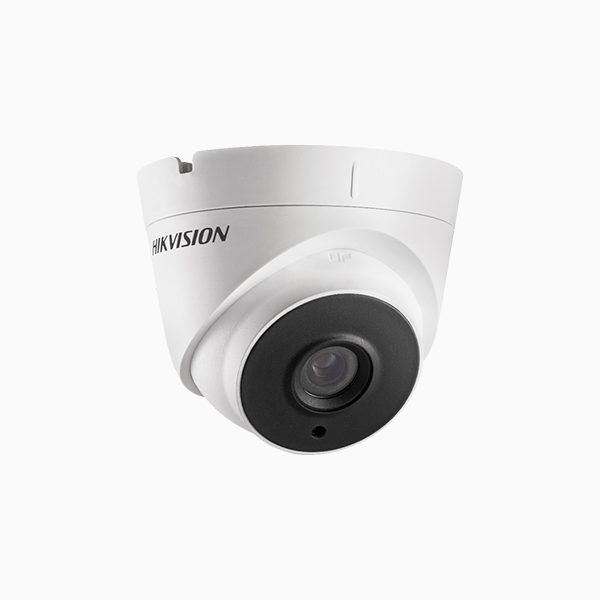

Hikvision 2 MP PoC Fixed Turret Camera DS-2CE56D0T-IT3E

Hikvision 2 MP PoC Fixed Turret Camera DS-2CE56D0T-IT3E Specifications:

Key Feature
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
 True Day/Night
 EXIR 2.0, smart IR, up to 40 m IR distance
 IP66
 PoC.af
 Up the coax (HIKVISION-C)

Camera

• Image Sensor2.0 megapixel progressive scan CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 103.55°

  3.6 mm, horizontal FOV: 82.63°

  6 mm, horizontal FOV: 54.38°

  8 mm, horizontal FOV: 37.96

  12 mm, horizontal FOV: 24.36

• Lens MountM12

Illuminator

• Supplement Light RangeUp to 30 m


• Image SettingsBrightness;Sharpness;Mirror;AGC
• Frame Rate

  PAL: 1080P@25fps

  NTSC: 1080P@30fps

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC
• Noise Reduction2D DNR

Supplement Detection(PIR)

• PIR RangeUp to 40 m

Interface

• Video Output1 HD analog output

General

• Power12 VDC ±30%/PoC.af, max. 4 W
• MaterialPlastic
• Dimension110 mm × 93.2 mm (4.33″ × 3.67″)
• Approx. 350 g (0.77 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

Approval

• ProtectionIP66

The DataSheet
