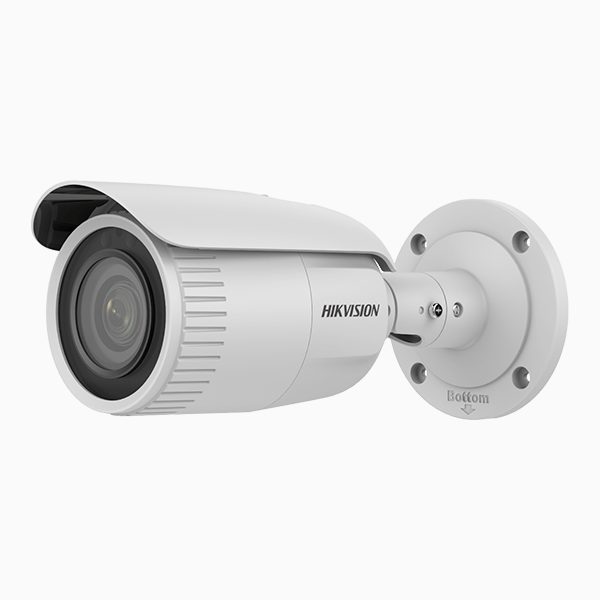

Hikvision 2 MP Varifocal Bullet Network Camera DS-2CD1623G0-I(Z)

Hikvision 2 MP Varifocal Bullet Network Camera DS-2CD1623G0-I(Z) Specifications:

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Wide Dynamic RangeDigital WDR
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens

• Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.6

Illuminator

• IR Wavelength850 nm
• IR Range

  Up to 50 m

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720),

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

Audio

• Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-S: 8 kHz/16 kHz
• Environment Noise Filtering-S: Yes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule, Day, Night
• Image EnhancementBLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Audio-S: 1 input (line in), 1 output (line out), mono sound
• Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA
• Reset KeyYes

Event

• Basic EventMotion detection, video tampering alarm, exception
• Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output

General

• Power

  12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W

• Camera DimensionØ105 mm × 244.4 mm (4.1″ × 9.6″)
• Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Camera WeightApprox. 1035 g (2.3 lb.)
• With Package WeightApprox. 1550 g (3.4 lb.)
• Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Other

  IP67 (IEC 60529-2013)
