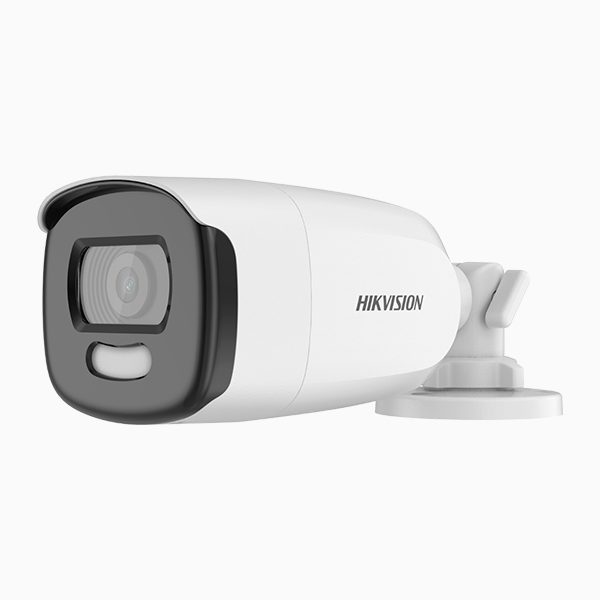

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F Specifications:

● 5 MP, 2560 × 1944 resolution
● 24-hour color image
● 130 dB true WDR, 3D DNR
● 3.6 mm, 6 mm fixed focal lens
● Smart Light, up to 40 m white light distance
● 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
● IP67

Camera

• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & NightColor
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type3.6 mm, 6 mm fixed lens
• Focal Length & FOV80.1° (3.6 mm), 49.3° (6 mm)
• Lens MountM16

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40m


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
• Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25″ × 3.04″ × 8.68″)
• Approx. 565 g (1.25 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power

  12 VDC ± 25%, Max. 4.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

Approval

• ProtectionIP67

The Data Sheet
