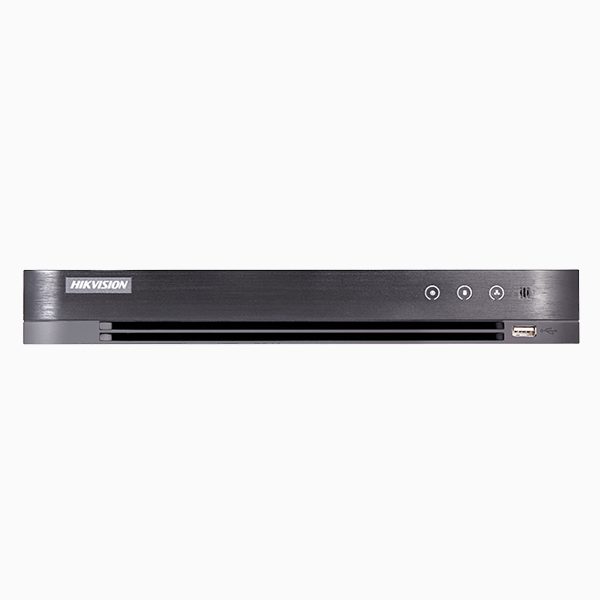

Hikvision 8-ch 5 MP 1U H.265 DVR DS-7208HUHI-K1
8-ch 5 MP 1U H.265 DVR
- 8 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
EGP10,500.00
Hikvision 8-ch 5 MP 1U H.265 DVR DS-7208HUHI-K1
Hikvision 8-ch 5 MP 1U H.265 DVR DS-7208HUHI-K1 Specifications:
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N) ,
- Video Bit Rate32 Kbps to 10 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
Video And Audio
- IP Video Input8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback8-ch
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),
Network
- Remote Connections64
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out8/4
- USB InterfaceFront panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
- Serial InterfaceRS-485 (half-duplex)
General
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (Without HDD)≤ 2 kg (4.4 lb)
- Consumption (Without HDD)≤ 20 W
Hikvision 8-ch 5 MP 1U H.265 DVR DataSheet
Hikvision 8-ch 5 MP 1U H.265 DVR Quick Start Guide
Hikvision 8-ch 5 MP 1U H.265 DVR User Manual
| brand | Hikvision |
|---|
