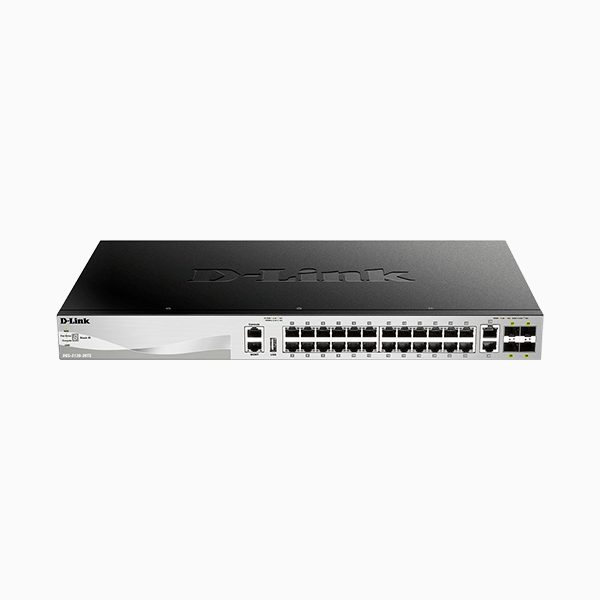

D-Link 30-Port Lite Layer 3 Stackable Managed Gigabit Switch DGS-3130-30TS

The D-Link 30-Port Lite Layer 3 Stackable Managed Gigabit Switch DGS-3130-30TS is Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast, and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provides 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provides 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provides 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the 802.3af and 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 RPS. The switches are also equipped with an USB 2.0 port, allowing the user to boot images and upload configuration files directly from, as well as conveniently save syslog files onto a USB 2.0 storage device.

SPECIFICATION

Interfaces

Ports

• 24 x 10/100/1000BASE-T PoE ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

Optional Redundant Power Supply

• DPS-700

Console Port

• 10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Management Port

• 10/100/1000BASE-T RJ-45 port for out-of-band IP management

USB Ports

• 1 x USB 2.0 Type A port

 Performance

Switching Capacity

• 168 Gbps

64-Byte Packet Forwarding Rate

• 125 Mbps

Packet Buffer Memory

• 2 MB

 Physical

MTBF (Hours)

• 900,546 hours

Acoustics

• Max: 52.2 dB
• Min: 33.5 dB

Heat Dissipation

• 104.65 BTU/h

Power Input

• 100 to 240 VAC, 50 to 60 Hz

Max Power Consumption

• 30.76 W

Download the datasheet.
