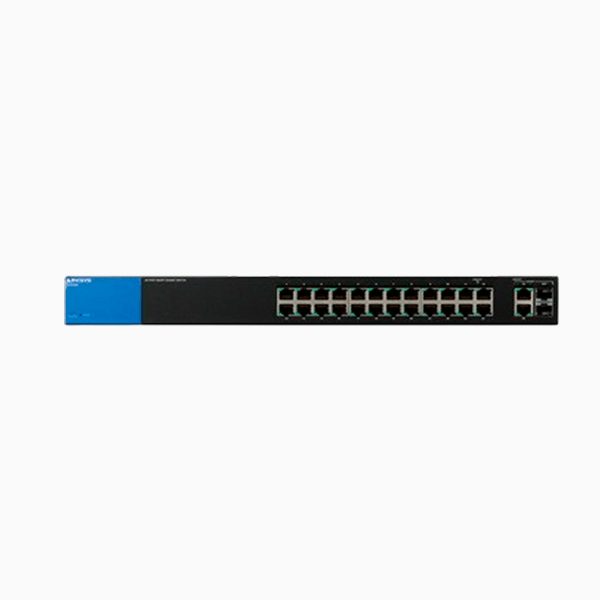

Linksys Switch 24 Port Gigabit Smart Managed + 2x Gigabit SFP/RJ45 Combo / LGS326

Linksys Switch 24 Port Gigabit Smart Managed + 2x Gigabit SFP/RJ45 Combo / LGS326 Specifications:

• Model Name:
  LGS326
• Network Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.1d
  • IEEE 802.1Q/p
  • IEEE 802.1X
• Memory:
  128 MB
• LEDs:
  System (blue), Link/Act (green)
• System Power Consumption without PoE+:
  • 110V:17.62W
  • 220V:17.72W
• Forwarding Rate:
  69 Mpps
• Switching Capacity:
  52 Gbps
• Jumbo Frame (FE, GE):
  9K
• Dimensions (LxWxH):
  440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
• Weight:
  424 kg (5.33 Ibs.)
• Power Input:
  • 100–240V
  • 50-60 Hz
  • (0.7A max)
• Operating Temperature:
  0 to 50°C (32 to 122°F)
• Storage Temperature:
  -40 to 70°C (-40 to 158°F)
• Operating Humidity:
  10 to 90% RH
• Storage Humidity:
  10 to 90% RH (non-condensing)
• Spanning Tree:
  IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
• Link Aggregation:
  IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
• VLAN:
  Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
• Auto Voice VLAN:
  VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
• IGMP Snooping:
  IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
• HOL Blocking Prevention:
  Head-of-line (HOL) blocking prevention
• Port Mirroring:
  Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
• Security Features:
  • 1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Port security supports limited dynamic lock and locked MAC address
  • Management access control
• Storm Control:
  Broadcast, flooding, and multicast
• RMON:
  Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
• Management Interface:
  • HTTP
  • HTTPS
• Other Management:
  Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
• SNMP:
  • Version 1
  • Version 2c
• Firmware Upgrade:
  • Web Browser (HTTP/HTTPS)
  • TFTP
• QoS – Class of Service:
  Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• Combo Ports (RJ45 + SFP):
  2 combo on ports g25, g26
• Copper FE/GE Ports (RJ45):
  g01–g12, g13–g24
• Green Power Mode:
  EEE+, Short Reach + Energy Detect
• QoS – Priority Levels:
  4 hardware queues
• QoS – Scheduling:
  Priority queuing and weighted round robin (WRR)
• Total System Ports:
  26GE
• Mac Addresses:
  8K
