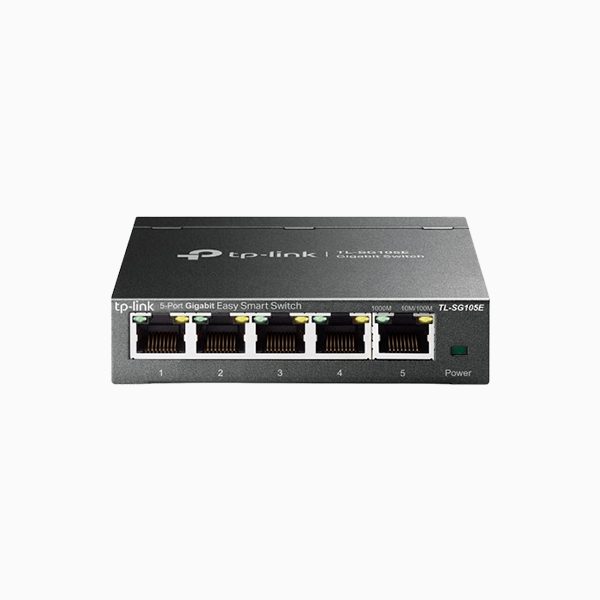

TP-Link 5-Port Gigabit Easy Smart Switch TL-SG105E
5-Port Gigabit Easy Smart Switch
- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
TP-Link 5-Port Gigabit Easy Smart Switch TL-SG105E
The TP-Link 5-Port Gigabit Easy Smart Switch TL-SG105E provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 5 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) |
| Max Power Consumption | 2.82 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 9.62 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2 K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG105E Power Adapter Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
