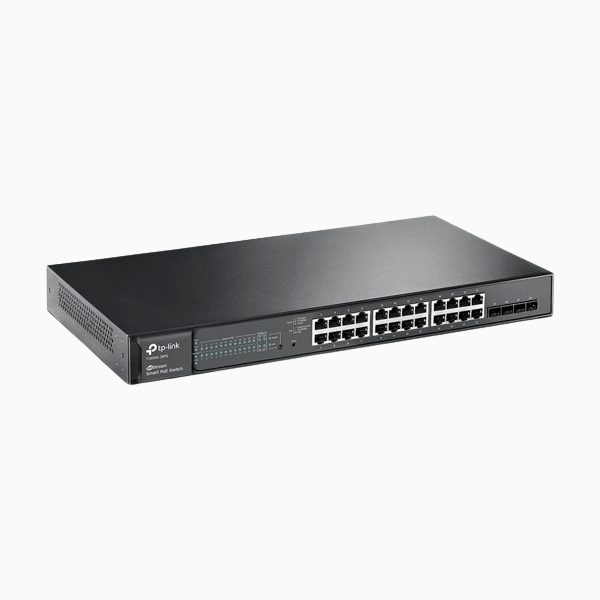

TP-Link JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots T1600G-28PS
- Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 192W
- L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
TP-Link JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots T1600G-28PS
TP-Link JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots T1600G-28PS
The TL-SG2424P supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2424P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 192W |
| Dimensions ( W x D x H ) | 17.3 * 8.7 * 1.73 in. (440 * 220 * 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 30.77W (110V/60Hz with no PD connected) 235.8W (110V/60Hz with 192W PD connected) |
| Max Heat Dissipation | 104.99 BTU/h (with no PD connected) 804.55 BTU/h (with 192W PD connected) |
| PERFORMANCE | |
| Bandwidth/Backplane | 56Gbps |
| Packet Forwarding Rate | 41.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay DHCP Server IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Access Control List | L2~L4 package filtering MAC ACL IP ACL Combined ACL IPv6 ACL |
| Security | AAA Port Security DHCP Snooping IP-MAC-Port Binding IPv6-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image EEE |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | T1600G-28PS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
