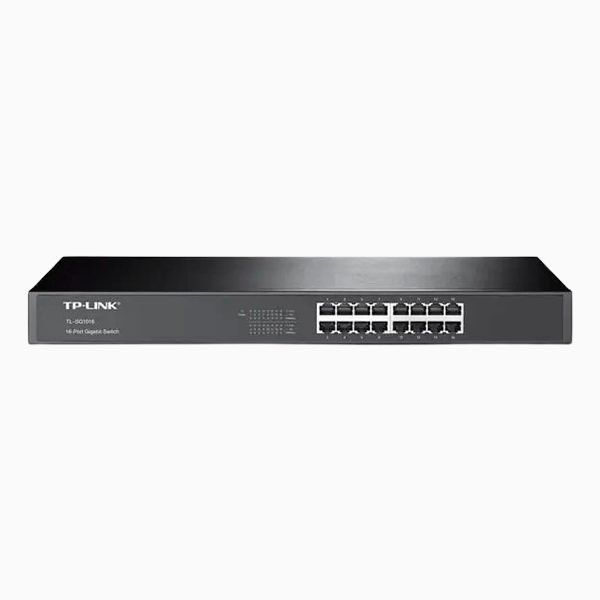

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
- 16 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
The TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 10.44W |
| Max Heat Dissipation | 35.60BTU/h |
| PERFORMANCE | |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| QoS | 802.1p/DSCP QoS*
*Only for V12 and later version |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | 16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
