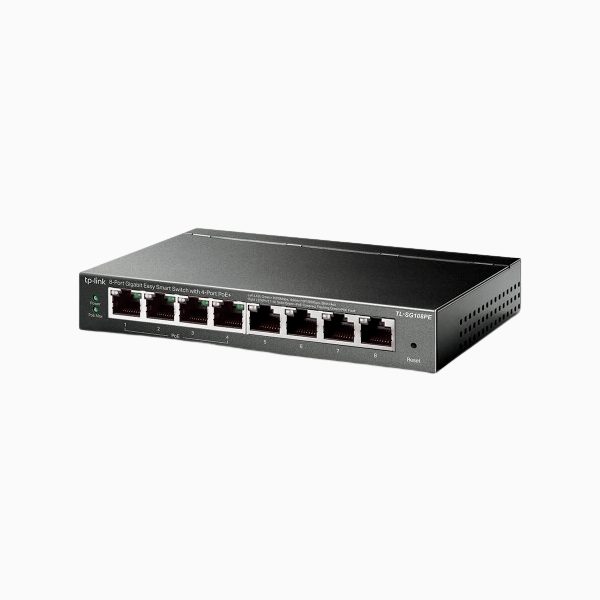

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

  • Eight 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 64 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+ Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Eight 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/1.3 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 64W
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.
(158 × 101 × 25 mm)
Max Power Consumption 4.4 W (with no PD connected)
75.1 W (with 64 W PD connected)
Max Heat Dissipation 15.1 BTU/h (with no PD connected)
256.2 BTU/h (with 64 W PD connected)



PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 4 K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB



SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE Extend Mode**
PoE Auto Recovery
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward



OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for Management Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing



For More TP-Link Products, Check The TP-Link Products Page.
