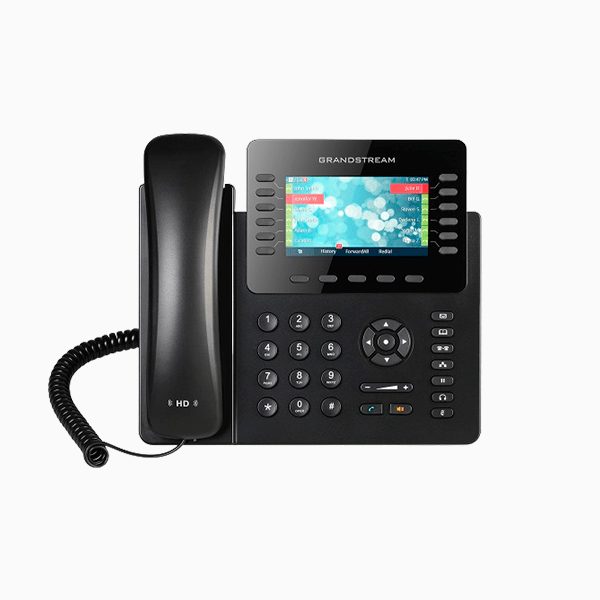

GrandStream GXP2170 An Enterprise IP Phone

The GrandStream GXP2170 An Enterprise IP Phone for High-Volume Users is a powerful High-End IP phone that is ideal for busy users who handle high call volumes. Receptionists, administrators, sales staff and other call-intensive rolls  can enjoy efficiency by utilizing the GXP2170’s 12 line keys, 4.3 inch color display LCD and 48 digital, on-screen speed dial/BLF keys. Provide users with the fastest possible connection speeds thanks to the device’s dual Gigabit, PoE network ports. Maximized call control, expandable speed dial/BLF capabilities and a sleek design makes this phone the ultimate high-volume experience.

As all Grandstream IP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.



• Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,

NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,

802.1x, TLS, SRTP, IPV6, CDP/SNMP/RTCP-XR

• Network Interfaces

Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated

PoE

Graphic Display 4.3 inch (480×272) TFT color LCD

• Bluetooth

Yes, integrated

• Feature Keys

12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED

indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/

REDIAL, SPEAKERPHONE, VOL+, VOL

• Voice Codecs

Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus,

in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,

AGC

• Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

• Telephony Features

Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up

to 2000 items), call waiting, call log(up to 500 records), XML customization of screen,

off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

• HD Audio

Yes, HD handset and speakerphone with support for wideband audio

• Extension Module

Yes, can power up to 4 GXP2200EXT modules which features a 128×384 graphic LCD,

20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W

power consumption per unit.

• Base Stand

Yes, 2 angle positions available, Wall Mountable

• QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

• Security

User and administrator level passwords, MD5 and MD5-sess based authentication,

256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control

• Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified

and traditional Chinese, Korean, Japanese and more

• Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES

encrypted XML configuration file, FTP/FTPS

• Power & Green Energy Efficiency

Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ;

Integrated Power-over-Ethernet (802.3af)

Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)

• Physical

Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg ; Package

weight:1.43kg

• Temperature and Humidity

Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing

• Package Content

GXP2170 phone, handset with cord, base stand, universal power supply, network

cable, Quick Installation Guide, GPL license

• Compliance

FCC: Part 15 (CFR 47) Class B

CE: EN55022  Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1

RCM: AS/ACIF S004; AS/NZS CISPR22/24;  AS/NZS 60950.1





GXP2170 An Enterprise IP Phone DataSheet
