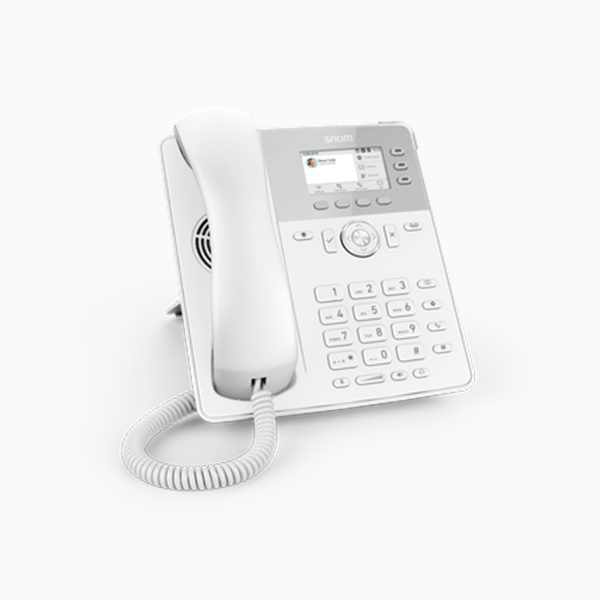

Snom D717 VOIP Deskphone

The Snom D717 VOIP Deskphone is a professional desktop phone and a cost-effective entry-level device into the world of VoIP telephony. An advanced IP phone, the D717 features a high-resolution colour display that is second to none in its price segment and also features a unique and innovative brightness and proximity sensor.

The sensor reacts as soon as the user’s hand nears the display or the function keys of the IP phone and then displays frequently used features and called numbers. In addition, the sensor ensures that the brightness of the telephone display is always adjusted to the current lighting conditions in the room, reducing the carbon footprint of each device.

In addition to the high-resolution colour display, the phone also has multi-colour LED function keys, an integrated gigabit switch and a USB port ensuring that the complete range of connectivity options are available.

Of course, the Snom D717 is available in both black and white.

[embedyt] https://www.youtube.com/watch?v=kBIyE-ldWbg[/embedyt]

This means that the phone can be perfectly adapted to a variety of business locations – whether office or practice.

The Snom D717 combines state-of-the-art technology, best voice quality and a clear design in one device – at an unbeatable price. This makes the Snom D717 the perfect entry-level device in the world of professional IP telephony.

Features:

• 6 SIP identities / accounts
• XML browser
• Call lists for dialed, received, missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP PBX platforms

Call Features:

• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable) (2)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold (2)
• Blind and attended transfer
• Call forwarding
• 3-way conferecning on the phone
• Extension monitoring, call pickup (2)
• Call park, call unpark (2)
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC) (2)
• Unified Communications ready

Audio:

• Codecs:
  • 711 A-law, µ-law
  • 722 (wideband)
  • 726, G.729AB, GSM 6.10 (FR)
• Built-in assignable ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Setup:

• Configurable through web interface
• Provisioning:
  • Automatic loading of settings via HTTP/HTTPS/TFTP
  • DHCP Redirection Service
  • Remote management via TR-069/TR-111

Protocols:

• SIP (RFC3261)
• HDCP, NTP
• HTTP/HTTPS/TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface:

• Localization (language, time, dial tone)
• Red LED for call indication / message waiting
• 4 context-sensitve keys
• 3 programmable line / function keys with multicolour LEDs
• Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page
• Audio keys with LED indication: Mute
• Speakerphone, Headset
• Volume key
• 5-way naviagation key
• OK and Cancel keys
• Automatic backlight enabled

Security:

• 1X authentication and EAPOL
• Transport layer security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS server/client
• password-protected web interface
• VPN-support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Phone Features:

• Dimensions (approx.):
  • 205 x 185 x 40mm (LxWxD) w/o foot stand
  • 205 x 185 x 200/220mm (LxWxD) with foot stand
• Weight (approx.) device 710g, footstand 120g
• Input voltage: 5Vdc (SELV)
• Power supply: PoE or 5Vdc power adapter (1), 10 Watts
• Handset: 4P4C
• Headset: 4P4C Support for Snom EHS Advanced (1)
• Hearing -Aid compatible (HAC) handset
• 1xUSB 2.0 host port, Type A
• Environmental conditions:
  • Ambient temperature: 0°C to 35°C (32°F to 95°F)
  • Storage temperature: -10°C to 45°C (14°F to 113°F)
  • Humidity: 5% to 95% (non-condensing)
• Included in delivery:
  • Phone unit
  • Footstand
  • Handset with cord
  • Ethernet cable
  • Quick Start Guide
• Colour: Black or white

Type Approvals:

• CE Mark
• Safety IEC 60950

(1) Optional accessory (see below for part numbers)

(2) If supported by PBX

D717 VOIP Deskphone DataSheet
