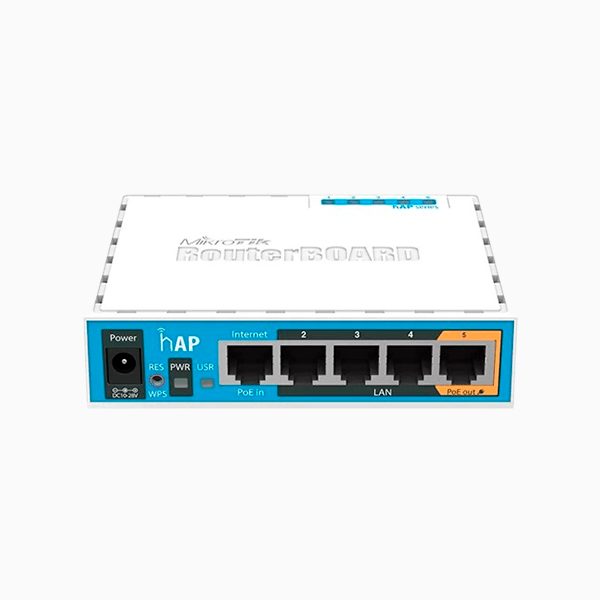

MikroTik hAP RB951Ui-2nD
MikroTik hAP
EGP1.00
MikroTik hAP RB951Ui-2nD
MikroTik hAP RB951Ui-2nD 2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support
This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
hAP provides a PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
The hAP is preconfigured, so all you need to do is plug in the internet cable, and the power, and start using the internet by connecting to the MikroTik network.
Specifications
| Details | |
| Product code | RB951Ui-2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
Wireless capabilities
| Details | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
| 10/100 Ethernet ports | 5 |
Peripherals
| Details | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
PoE-out
| Details | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max total out (A) | 500 mA |
Certification & Approvals
| Details | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| brand | MikroTik |
|---|
