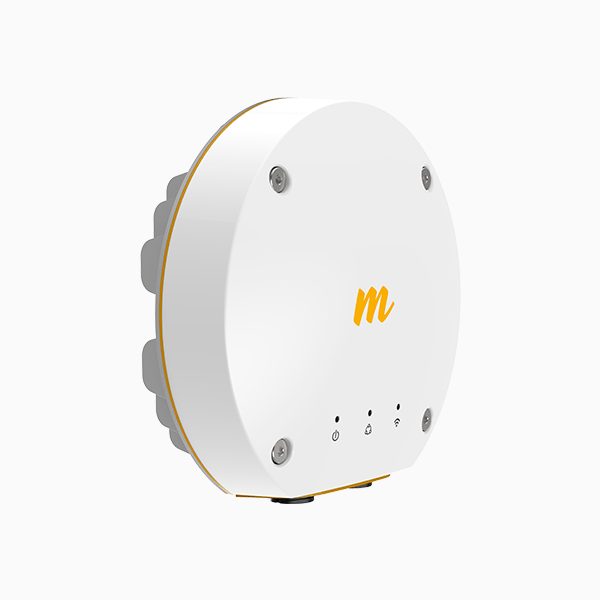

Mimosa’s B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements at the lowest cost per Mbps in the industry.
Mimosa B11
Mimosa B11
Mimosa’s B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements at the lowest cost per Mbps in the industry.
Fiber to wireless is the future of connectivity, and the B11 is ready for it. Simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you’re not quite ready for fiber, the B11 also offers a standard Gigabit Power-over-Ethernet connection.
[embedyt] https://www.youtube.com/watch?v=ZnBtr1Dg1BQ[/embedyt]
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY), 750 Mbps IP aggregate running in TDMA-FD mode typically required in ETSI markets |
| Low Latency | < 1 ms |
| Wireless Protocols | TDMA, TDMA-FD |
| Radio | |
| MIMO & Modulation | 4×4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 10000-11700 MHz restricted by country of operation |
| Max Output Power | 27 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 30 W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 260 mm (10.2″) Width: 158 mm (9.6″) Depth: 70 mm (2.8″) |
| Weight | 2 kg (4.5 lbs) |
| Enclosure Characteristics | Outdoor UV stabilized plastic Aluminum mounting panel |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph) |
| Mounting | Direct mount to compatible antenna |
| Antenna Connection | Direct connect to circular dual polarized antenna |
| Network Interfaces | Single connection ethernet or fiber |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500′) maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Fiber Capable | SFP Cage included Radio accepts either copper Ethernet or SFP but does not support simultaneous operation |
| Dual Protocol Operation | 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-Free dedicated 2.4 GHz Wi-Fi management radio |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 101 |
| RoHS Compliance | Yes |
