Carrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions

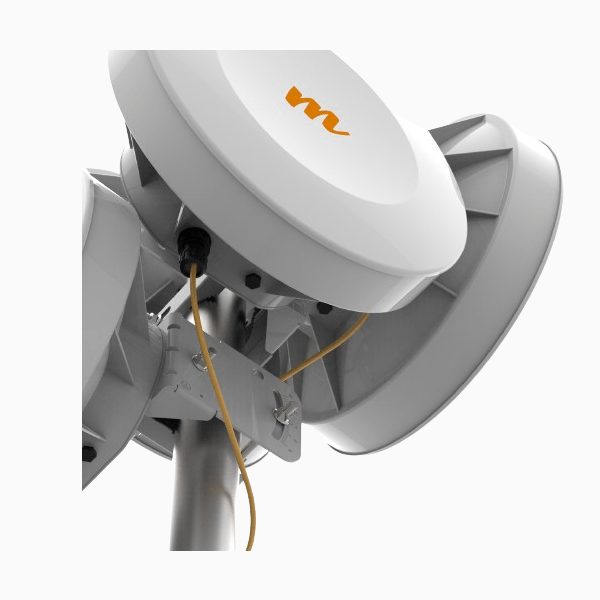

The integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡
Mimosa B5
Mimosa B5 is Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | < 1 ms in Auto Mode |
| Wireless Protocols | TDMA, TDMA-FD, AUTO TDMA |
| Radio | |
| MIMO & Modulation | 4×4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 5150-5875 MHz restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Antenna | |
| Gain | 25 dBi |
| Beamwidth ( 3dB ) | 8° ( HPOL and VPOL ) |
| Elevation Adjust | ± 20° mechanical adjust |
| Front-to-Back Ratio | >30 dB |
| Cross-Polar Isolation | >20 dB |
| Polarization | Dual-Linear (horizontal & vertical) |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Diameter: 442 mm (17.4″) Depth: 362 mm (14.3″) with bracket |
| Weight | 4.9 kg (10.8 lbs) with bracket |
| Enclosure Characteristics | Single enclosure with radome Outdoor UV stabilized plastic Painted steel bracket plate |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 39 kg @ 160 km/h (86 lbs @ 100 mph) |
| Mounting | Pole mounting kit included for 30mm (1.18″) to 90mm (3.54″) OD pipes |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500′) maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-Free dedicated 2.4 GHz Wi-Fi management radio |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory & Compliance | |
| Approvals | FCC Part 15.407, IC RSS210, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
