Mimosa b5c
Mimosa b5c
Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It’s like two smart links in a single radio!
Mimosa b5c

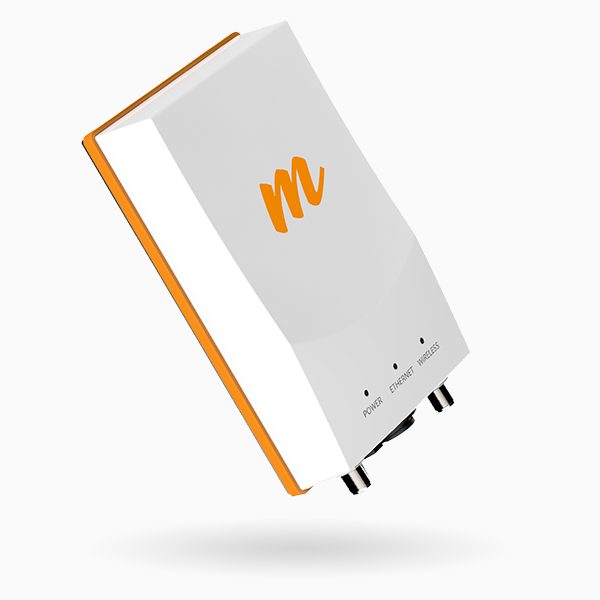

The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution, allowing virtually any antenna to be used for long-distance Point-to-Point backhaul.
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | < 1 ms in Auto Mode |
| Wireless Protocols | TDMA, TDMA-FD |
| Radio | |
| MIMO & Modulation | 4×4:4 MIMO OFDM up to 256QAM |
| Bandwidth* | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 4900-6200 MHz restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 267 mm (10.5″) Width: 158 mm (6.2″) Depth: 74 mm (3″) |
| Weight | 1.6 kg (3.5 lbs) |
| Enclosure Characteristics | Outdoor UV stabilized plastic Aluminum mounting panel |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph) |
| Mounting | Dual standard pole straps for 30 mm (1.18″) to 90 mm (3.54″) OD pipes |
| Connector Type | Female Type N (x2), intended for use with dual polarization antenna |
* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500′) maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool‡ |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for collocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
