Mimosa C5c
Mimosa C5c

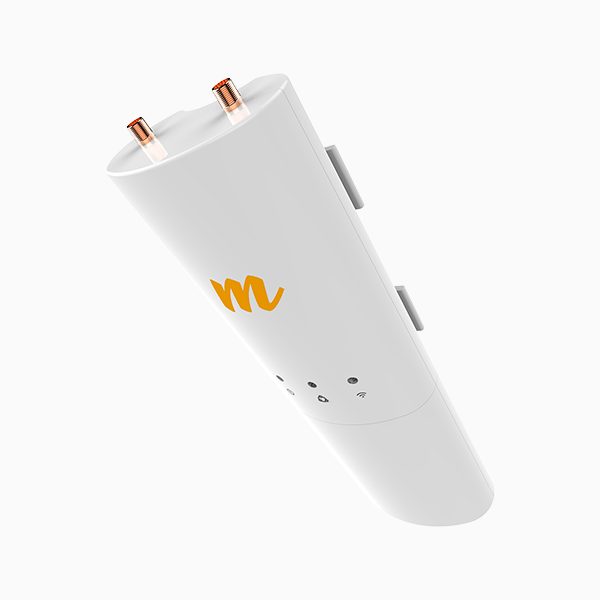

Connect to virtually any dual polarization antenna to custom-engineer longer distance client links. The C5c supports 2×2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.
Mimosa C5c
Mimosa C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.
| Performance | |
| Max Throughput | PTP/PTMP: 700 Mbps IP (866 Mbps PHY) |
| Wireless Protocols | WiFi Interop Mimosa SRS |
| Modes | PTMP Client PTP Backhaul |
| Radio | |
| MIMO & Modulation | 2×2:2 MIMO OFDM up to 256 QAM |
| Bandwidth* | 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop |
| Frequency Range | PTMP: 4900-6400 MHz*** PTP: 4900-6400 MHz Restricted by country of operation *new* US/FCC 5600-5650 MHz support FCC DFS (U-NII-2a, U-NII-2c) availability pending certification |
| Max Output Power | 27 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 9.2 W |
| System Power Method | Passive PoE (24-56 VDC) |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included) |
| Physical | |
| Dimensions | Depth 44 mm (1.73″) Width 65 mm (2.56″) Height 188.4 mm (7.42″) |
| Weight | 295 grams (10.4 oz) |
| Mounting | Single pole strap |
| Connector Type | RP-SMA (x2) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP55 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14501′) maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Management Services | Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | WPA2 + Mimosa 802.1x Client** |
| QoS | Supports 4 pre-configured QoS levels |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release
*** Extended frequency, above 6.2 GHz, requires use of A5/A5c access point with P/N 100-000xx-01
‡ U.S. Pat. No. US 9,001,689 and patents pending.
