MikroTik CCR1036-12G-4S

MikroTik CCR1036-12G-4S

MikroTik CCR1036-12G-4S

1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU

$1.00

MikroTik CCR1036-12G-4S

MikroTik CCR1036-12G-4S 1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 4GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU

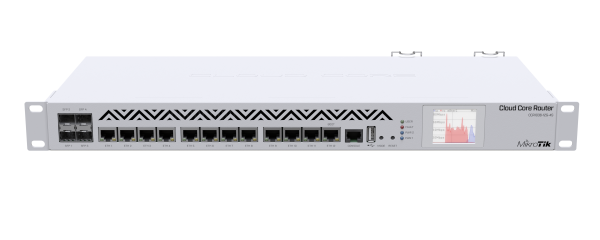

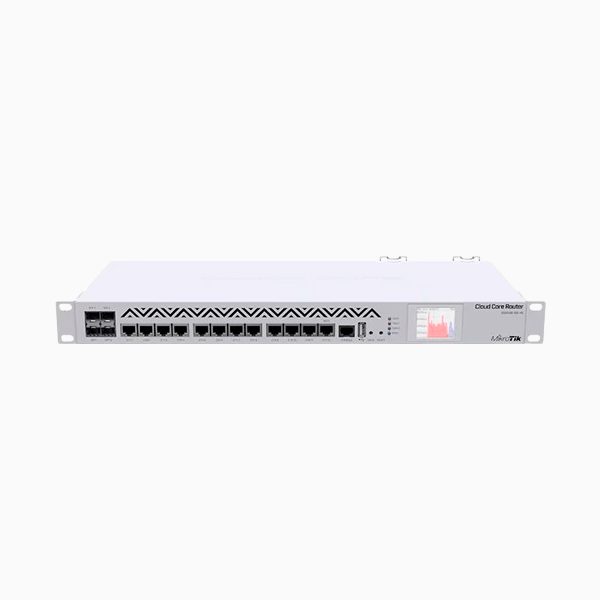

MikroTik CCR1036-12G-4S is an industrial-grade router with a cutting-edge 36-core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.

The device comes in a 1U rackmount case and has four SFP ports, twelve Gigabit ethernet ports, a serial console cable, and a USB port.

The new r2 version has onboard 4GB of RAM, an onboard M.2 slot, a full-size USB slot, and a dual PSU for redundancy!



Specifications

Details
Product code CCR1036-12G-4S
Architecture TILE
CPU TLR4-03680
CPU core count 36
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 4 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 60 W
Cooling type 2

Ethernet

Details
10/100/1000 Ethernet ports 12

Fiber

Details
SFP DDMI Yes
SFP ports 4

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of M.2 slots 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

brand

MikroTik
