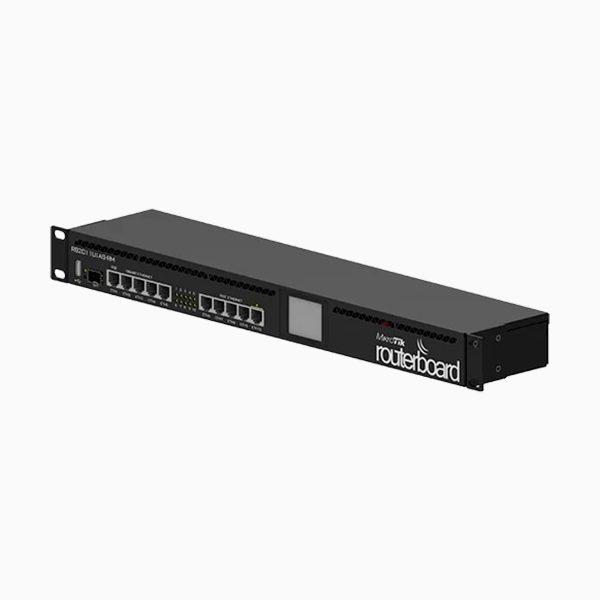

MikroTik RB2011UiAS-RM

MikroTik RB2011UiAS-RM

1,00 EGP

MikroTik RB2011UiAS-RM

MikroTik RB2011UiAS-RM 1U rackmount, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5

Description

MikroTik RB2011UiAS-RM

MikroTik RB2011UiAS-RM 1U rackmount, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5

The RB2011 is a low-cost multi-port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, and monitoring – are just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with the RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports but also has an RJ45 serial port, USB port, and more RAM (128MB instead of 64MB). Also, it has a RouterOS L5 license (instead of L4) and a nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is a PoE output function for port #10 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D, and S-35/53LC20D (not included)

RouterBOARD 2011UiAS-RM comes with a 1U rackmount enclosure, LCD panel, and power supply.

Specifications

Details
Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 443 x 92 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 28 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 510 mA
Max total out (A) 510 mA

Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5

Fiber

Details
SFP DDMI Yes
SFP ports 1

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

Additional information

brand

MikroTik
