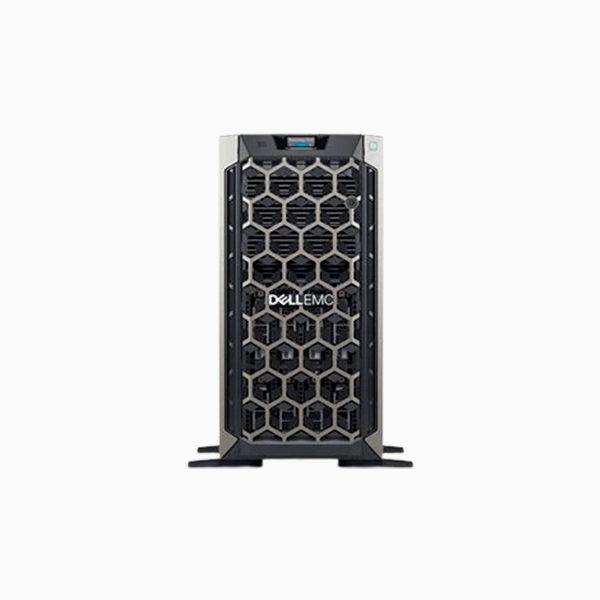

DELL EMC PowerEdge T340 Tower Server

DELL EMC PowerEdge T340 Tower Server

The Dell PowerEdge T340 operates reliably so you don’t have to slow down when connecting and managing your growing business.

  • Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
  • Save time and IT effort resolving server hardware issues with ProSupport Plus and SupportAssist*.
  • Help prevent downtime and protect your data from malicious changes with iDRAC9 Enterprise Server Lockdown mode.
  • Save your data automatically with reliable software RAID.

$700.00

DELL EMC PowerEdge T340 Tower Server

The DELL EMC PowerEdge T340 Tower Server enables you to grow through collaboration. Grow without limits* with this reliable and easy to manage server.

The T340 enables you to address common business workloads in your office and across remote offices.

Ideal for business applications like:

  • Collaboration
  • File sharing
  • Databases
  • Mail and messaging
  • Processor

Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor

  • Operating System

(Dell Technologies recommends Windows 11 Pro for business)
Canonical® Ubuntu® LTS
Citrix® Hypervisor®
Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

  • Memoryi

DIMM Speed
Up to 2666MT/s

Memory Type
UDIMM

Memory Module Slots
4 x DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only

Maximum RAM
UDIMM 64GB

  • Storage

Front Bays
Up to 8 x 3.5″ SAS/SATA (HDD/SSD), max 112TB
(Also supports up to 8 x 2.5″ SAS/SATA (HDD) in 3.5″ hybrid drive carrier)

  • Storage Controllers

Internal Controllers
PERC H330, H730p, HBA330

External Controllers (non-RAID)
12 Gbps SAS HBA

Software RAID
S140

Internal BOOT
Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)

Internal Dual SD Modulei

  • Security

Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional

  • Management

Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
Dell RACADM CLI
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services

OpenManage Integrations
BM Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

  • Power Supplies

495W Platinum (Hot plug redundant)
350W Bronze (Cable)
Hot plug power supplies with full redundancy option

  • Ports

Network options
2 X 1GbE

Front ports
1 x Dedicated iDRAC micro-USB
1 x USB 3.0

Rear ports
1 x Serial
4 x USB 2.0
2 x USB 3.0
1 x VGA

Internal Ports
1 x USB 3.0

  • Slots

PCIe
1 x Gen3 slot (x16)
2 x Gen3 slots (x8)
1 x Gen3 slot (x1)

Video Card
1 x VGA

  • Bezel

Optional LCD or security bezel

  • Form Factor

Tower Server

  • Dimensions & Weight

Height
430.3mm (16.9″)

Width
218.0mm (8.6″)

Depth
603.0mm (23.7″)

Weight
26kg (55.67lbs.)
*Dimensions do not include bezel, PSU handle, or tower foot



PowerEdge T340 Spec Sheet
