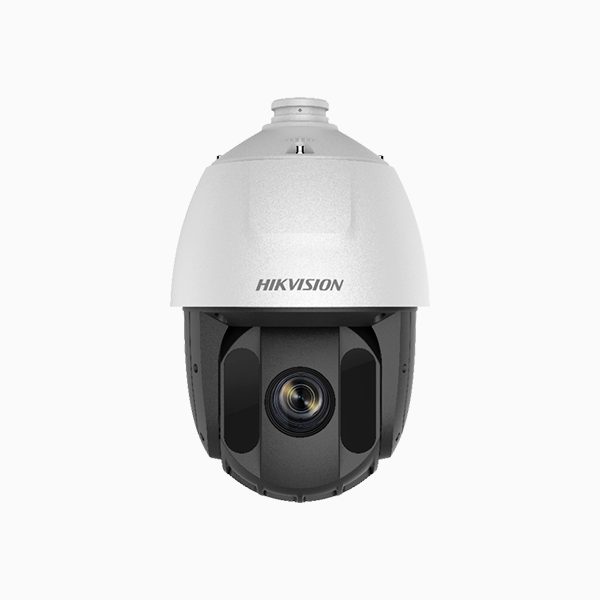

Hikvision 5-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome DS-2DE5225IW-AE(S5)

Hikvision 5-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome DS-2DE5225IW-AE(S5) Specifications:

Camera

• Image Sensor1/2.8＂ progressive scan CMOS
• Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
• Shutter Speed1/1 s to 1/30000 s
• Slow Shutteryes
• Focus半自动/手动/自动;semi-auto;manual;auto
• Day & NightICR
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISyes
• Regional Exposureyes
• Regional Focusyes
• Image Settingsbrightness;contrast;sharpness;saturation
• White Balanceauto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
• Digital Zoom16x
• Optical Zoom25x
• Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
• SNR＞52dB

Lens

• Focal Length4.8 mm to 120 mm, 25× Optical
• Zoom Speedapprox. 3.6 s
• FOV

  Horizontal field of view: 57.6° to 2.5° (wide-tele),

  Vertical field of view: 34.4° to 1.4° (wide-tele),

  Diagonal field of view: 64.5° to 2.9° (wide-tele)

• ApertureF1.6

Illuminator

• IR Distance150 m

PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output

Video

• Max. Resolution1920 × 1080
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 35 2× 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 TypeBaseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
• H.265 TypeMain Profile;main profile
• H.264+yes
• H.265+yes
• SVCyes
• ROIdynamic face tracking;主码流、子码流、第三码流支持8块ROI区域;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas

Audio

• Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

Smart Features

• Face Captureyes
• Basic Eventaudio exception;motion detection;video tampering alarm;exception
• Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
• Smart RecordANR;Dual-VCA
• Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

Network

• Network StorageNAS (NFS, SMB/ CIFS);ANR
• ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
• APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
• Simultaneous Live View20
• User/Host32
• Smooth Streamingyes
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200;Hik-Connect
• Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface

• Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storageup to 256 GB ; support microSD/microSDHC/microSDXC cards
• Alarm Input2 alarm inputs
• Alarm Output1 alarm output
• Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω

General

• Power24 VAC, Hi-PoE
• Power Consumption And CurrentMax. 30 W, including max. 10 W for IR
• Operating Conditionshumidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
• Resetyes
• MaterialADC 12, PC, PC+10% GF
• DimensionsΦ 208 mm × 345 mm (Φ 8.19″ × 13.58″)
• Approx. 3.3 kg (7.28 lb)

Approval

• ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
