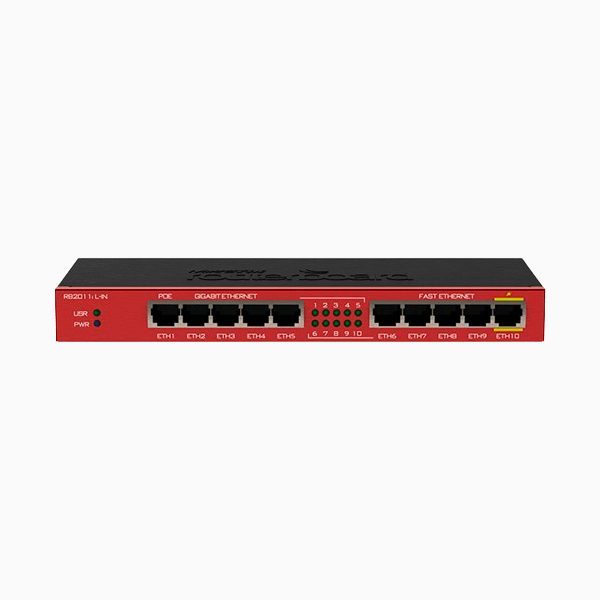

MikroTik RB2011iL-IN
MikroTik RB2011iL-IN
$1.00
MikroTik RB2011iL-IN
MikroTik RB2011iL-IN Desktop metal case, 5xEthernet, 5xGigabit Ethernet, PoE out on port 10, 600MHz CPU, 64MB RAM, RouterOS L4
The RB2011 is a low-cost multi-port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The MikroTik RB2011iL-IN is the most basic model, with five Gigabit Ethernet ports, five Fast ethernet ports, a power jack, and PoE support.
It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.
There is a PoE output function for port #10 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
RouterBOARD 2011iL-IN comes with a desktop enclosure and power supply.
A wall mount kit for the network closet is available for purchase as an optional accessory.
Specifications
| Details | |
| Product code | RB2011iL-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 230x90x25mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -35C to +65C |
Powering
| Details | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 18 W |
| Max power consumption without attachments | 6 W |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
PoE-out
| Details | |
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max total out (A) | 500 mA |
Ethernet
| Details | |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
| brand | MikroTik |
|---|
