MikroTik CCR1016-12G

MikroTik CCR1016-12G

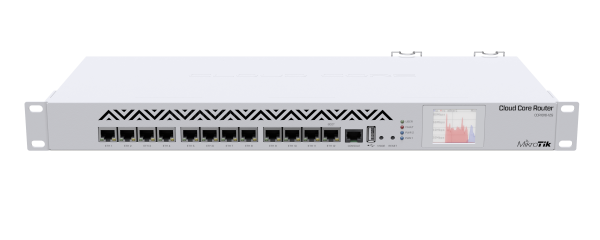

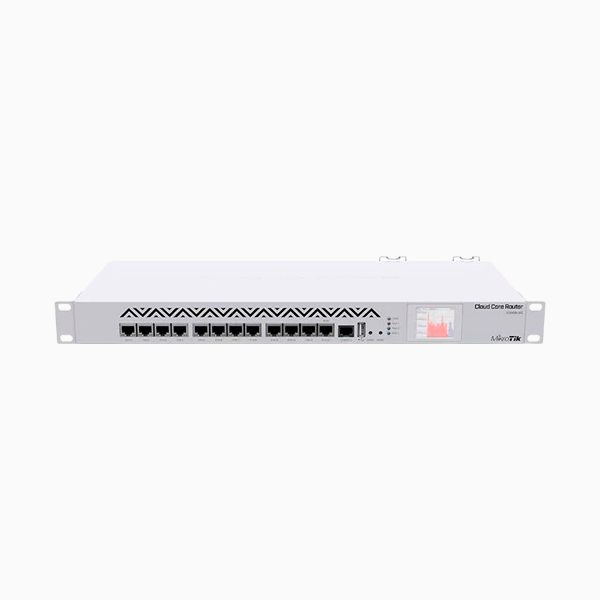

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

Description

MikroTik CCR1016-12G

MikroTik CCR1016-12G 1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6, Dual PSU

Specifications

Details
Product code CCR1016-12G
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 42 W
Max power consumption without attachments 37 W
Cooling type 2

Ethernet

Details
10/100/1000 Ethernet ports 12

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20

For More MikroTik Products, Check The MikroTik Products Page.
