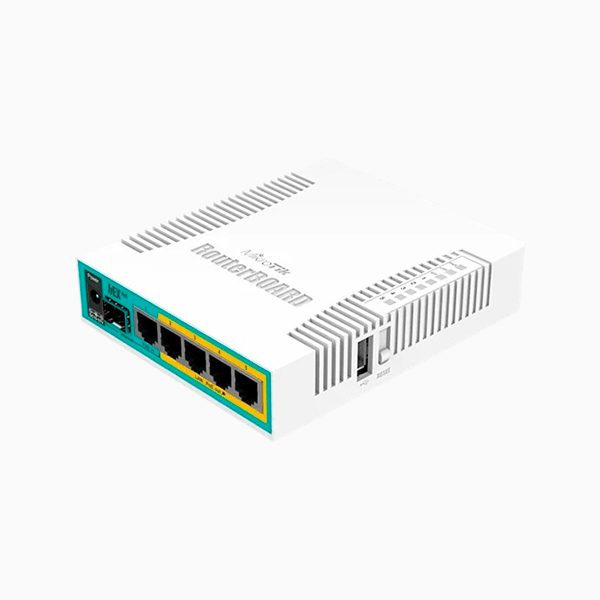

MikroTik hEX PoE RB960PGS
MikroTik hEX PoE RB960PGS 5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit.
It is affordable, small, and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Fewer power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit. Fewer power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices if 48-57 input voltage is used.
Specifications
Details | |
Product code | RB960PGS |
Architecture | MIPSBE |
CPU | QCA9557 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -40°C to 60°C |
Powering
Details | |
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 12-57 V |
Max power consumption | 54 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 12-57 V |
PoE-out
Details | |
PoE-out ports | Ether2-Ether5 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1 A |
Max out per port output (input 30-57 V) | 450 mA |
Max total out (A) | 2 A |
Ethernet
Details | |
10/100/1000 Ethernet ports | 5 |
Fiber
Details | |
SFP ports | 1 |
Peripherals
Details | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
Certification | CE, EAC, ROHS |
IP | IP20 |
