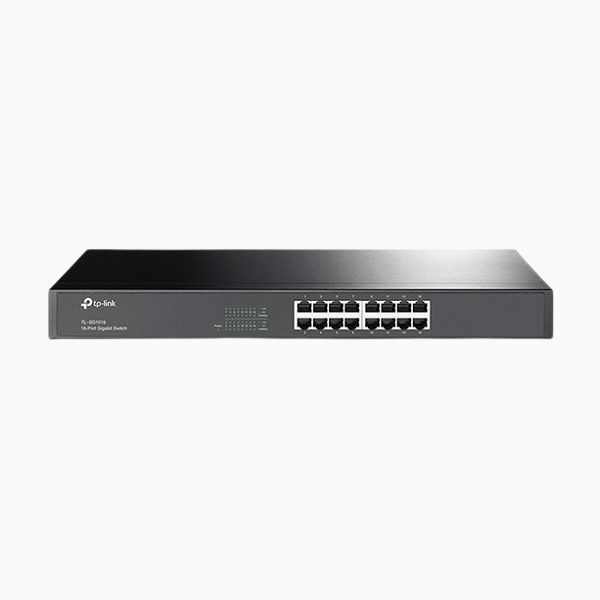

TP-Link 16-Port Gigabit Rackmount Switch TL-SG1016

16-Port Gigabit Rackmount Switch

  • 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case

TP-Link 16-Port Gigabit Rackmount Switch TL-SG1016

The TP-Link 16-Port Gigabit Rackmount Switch TL-SG1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save on power consumption, making it an eco-friendly solution for your business network.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 9.26W (220V/50Hz)
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 10.44W
Max Heat Dissipation 35.60BTU/h



PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS*

*Only for V12 and later version

Green Technology Yes
Transfer Method Store-and-Forward



OTHERS
Certification FCC, CE, RoHS
Package Contents 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
