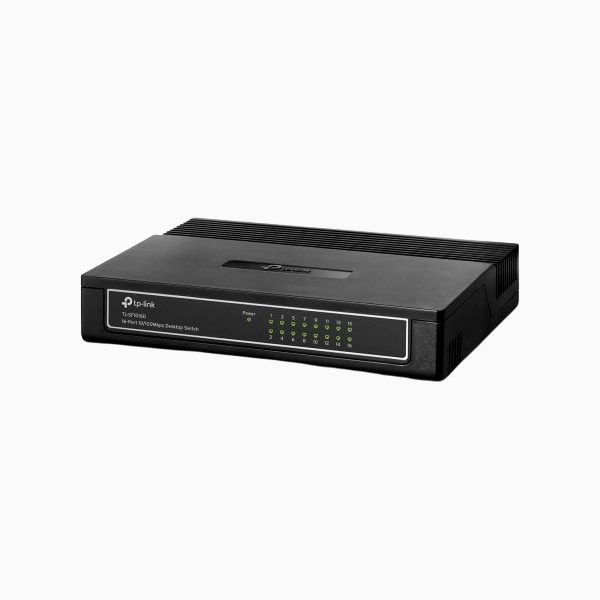

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

  • 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

Description

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

What This Product Does

The TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

 Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or dedicated uplink ports. IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode manage the traffic congestion and make TL-SF1016D works reliably.

HARDWARE FEATURES
Interface 1610/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
Power Consumption Maximum: 3.1W (220V/50Hz)
External Power Supply 100~240VAC, 50/60Hz
Mac Address Table 1K
Dimensions ( W x D x H ) 7.9*5.6*1.6 in. (200*142*40 mm)
Max Power Consumption 3.23 W (220V/50Hz)
Max Heat Dissipation 11.01 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure
OTHERS
Certification FCC, CE, RoHs
Package Contents 16-Port 10/10Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
