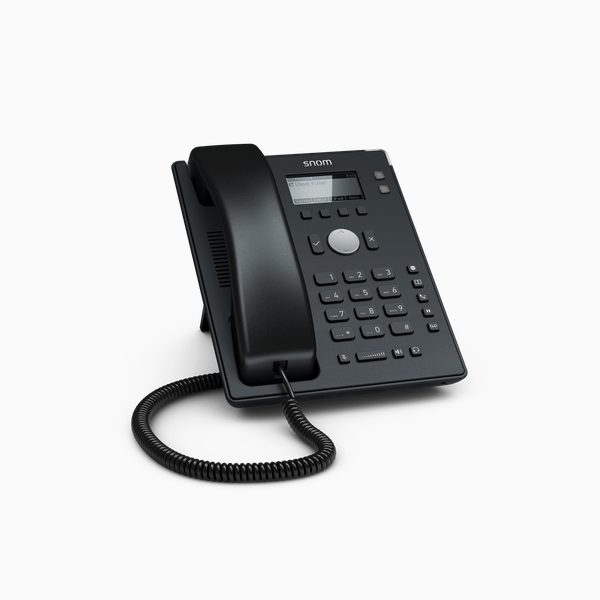

Snom D120 Desk Telephone

With the D120, Snom completes its phone series with a real entry-level device. Designed for large installations, such as those that can be found in the hotel- or healthcare industry, its straightforward design and exceptional audio quality meet all the requirements of an entry-level phone. The Snom D120 Desk Telephone is a no-frills phone without a large display, special function keys or features such as call holding for more than one call etc. and has been designed purely with stability and ease-of-use in mind.

Nevertheless, the Snom D120 does feature a backlit display which is a unique within the price segment. The D120 is hearing aid compatible (HAC), is equipped with its own specially adapted firmware, has very low power consumption requirements, can be used via PoE (Power over Ethernet) and is compatible with Snom’s redirection services. Combined with an unbeatable price, it is the leader in its class.

Specifications

Protocols

• SIP (RF3261)
• DHCP, NTP
• HTTP/HTTPS/TFTP
• LDAP (Directory)
• Dual Stack IPv4/IPv6

User Interface

• Number of keys: 32
• Line keys with LED: 2
• Dedicated keys: DND, Directory, Transfer, Hold, Message
• Context-sensitive function keys: 4
• Navigation keys: 2 (up/down)
• Audio keys: Mute, Speakerphone, Volume control
• Redial via call lists (OK key)
• High-visibility red LED for call indication / message waiting (2)
• Menu-driven interface
• Localization (Language, time, dial tone)

Security

• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, SRTCP
• VLAN
• IEEE 802.1X
• LLDP-MED
• Web interface password protection

Phone Features

• Dimensions: 205 x 161 x 32 mm (W/o foot stand)
• Dimensions: 205 x 161 x 120 mm (with foot stand)
• Input voltage: 5V DC (SELV)
• Handset: RJ-4P4C
• Headset: RJ-4P4C
• Hearing aid compatible (HAC) handset
• Power: PoE or 5V DC power adapter (1)
• Environmental Conditions:
  • Ambient temperature: 0° to 35° C(32° to 95° F)
  • Non-operating temperature: -10°C to 45°C
  • Relative humidity: 5% to 95% noncondensing
• Included in delivery
  • Base phone unit
  • Foot stand
  • Handset with cord
  • Ethernet cable
  • Quick Installation Guide
• Color: Black
• Warranty: 2 years
• Part Number: 00004361 for all markets

Type Approval

• CE Mark
• Safety IEC 60950

(1) Optional accessories (see below for part number)
(2) Optional: If supported by PBX

Part numbers for optional accessories

00004325 Power Adapter A6 with EU clip
00001168 UK clip for Power Adapter A6
00004373 Power Adapter with fixed plug EU
00004374 Power Adapter with fixed plug UK
00004341 Monaural Headset Snom A100M
00004342 Binaural Headset Snom A100D

D120 Desk Telephone Data Sheet
