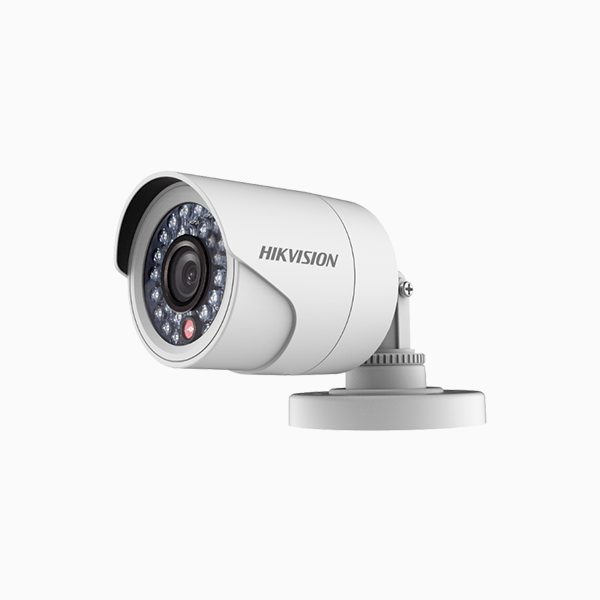

Hikvision 2 MP PoC Fixed Mini Bullet Camera DS-2CE16D0T-IRPE

Hikvision 2 MP PoC Fixed Mini Bullet Camera DS-2CE16D0T-IRPE Specifications:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 True Day/Night
 Up to 20 m IR distance
 IP66
 PoC.af
 Up the coax (HIKVISION-C)

• Camera
• Image Sensor2.0 megapixel progressive scan CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
• Lens MountM12

• Illuminator
• Supplement Light TypeIR
• Supplement Light range up to 20 m

• Image
• Image SettingsBrightness; Sharpness; Mirror;AGC
• Frame Rate

  PAL: 1080p@25 fps

  NTSC: 1080p@30 fps

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• SNR> 62 dB
• Image EnhancementBLC
• Noise Reduction2D DNR

• Interface
• Video Output1 HD analog output

• General
• Power12 VDC ± 30%/PoC.af, Max. 3 W
• MaterialPlastic
• DimensionΦ 70 mm × 154.5 mm (Φ 2.76″ × 6.08″)
• Approx. 400 g (0.88 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP66

The Data Sheet
