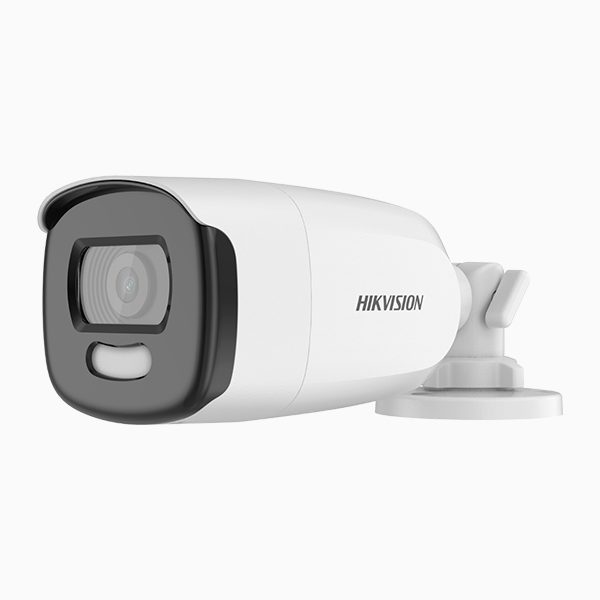

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F28

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F28

5 MP ColorVu Fixed Bullet Camera

  • 5 MP full time color bullet camera
  • 24/7 full color imaging
  • 2.8 mm fixed focal lens
  • Warm supplemental light with 40 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Description

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F28

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F28 Specifications:

Camera

  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time

    PAL: 1/25 s to 1/50, 000 s

    NTSC: 1/30 s to 1/50, 000 s

  • Day & NightColor
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
  • Signal SystemPAL/NTSC

Lens

  • Lens Type2.8 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
  • Lens MountM16

Illuminator

  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 40m


  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
  • Frame Rate

    TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps

    CVI: 4MP@30fps, 4MP@25fps

    AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

    CVBS: PAL/NTSC

  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC,HLC
  • White BalanceAuto/Manual

Interface

  • Video OutputSwitchable TVI/AHD/CVI/CVBS

General

  • MaterialMetal
  • Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25″ × 3.04″ × 8.68″)
  • Approx. 565 g (1.25 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power

    12 VDC ± 25%, Max. 4.9 W

    *You are recommended to use one power adapter to supply the power for one camera.

Approval

  • ProtectionIP67
