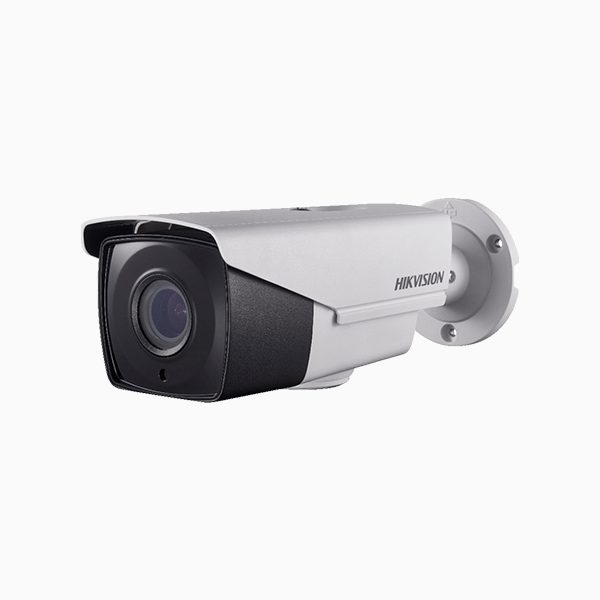

Hikvision 2 MP PoC Motorized Varifocal Bullet Camera DS-2CC12D9T-AIT3ZE

Hikvision 2 MP PoC Motorized Varifocal Bullet Camera DS-2CC12D9T-AIT3ZE

2 MP PoC Motorized Varifocal Bullet Camera

  • 2 MP high-performance bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong backlighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • The lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP67)
  • Dual outputs (HDTVI and CVBS signals output simultaneously)
  • Transmits both HD video and power over the same coaxial cable

Hikvision 2 MP PoC Motorized Varifocal Bullet Camera DS-2CC12D9T-AIT3ZE



Hikvision 2 MP PoC Motorized Varifocal Bullet Camera DS-2CC12D9T-AIT3ZE Specifications:

Key Features
 2 MP high-performance CMOS
 Ultra-Low Light Pro
 Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 40 m IR distance
 Dual outputs: 1 HD analog output/1 CVBS output
 PoC.at, smart voltage detection
 1 alarm in/out
 IP67
 Up the Coax (HIKVISION-C)

Camera

  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax.: 30 times
  • ApplicationIndoor/outdoor/indoor1/low ligh

Lens

  • Lens Type2.8 mm to 12 mm, motorized vari-focal lens
  • Focal Length & FOV32.1° to 98°
  • Lens MountΦ14


  • Image SettingsDefog, Mirror, Defective Pixel Correction, Sharpness, Camera Title, LSC (Lens Shading Correction)
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (White & Black)
  • Wide Dynamic Range (WDR)> 120 dB
  • Image EnhancementWDR/BLC/HLC/OFF
  • Privacy MaskON/OFF, 8 programmable privacy masks
  • Noise ReductionON/OFF
  • White BalanceATW/AWC-SET/MANUAL
  • AGCSupport

Interface

  • Video Output1 HD analog output/1 CVBS output (75Ω/BNC)
  • Alarm1 CVBS output (75Ω/BNC)

Event

  • Motion Detection4 programmable motion areas

General

  • MaterialMetal
  • DimensionΦ 145.2 mm × 124.1 mm (Φ 5.72″ × 4.89″ )
  • Approx. 645 g (1.42 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C
  • LanguageEnglish
  • Power Supply24 VAC/12 VDC ±30%/PoC.at
  • ConsumptionMax. 10.5 W
  • IR RangeUp to 40 m

Approval

  • ProtectionIP67, IK10



The Data Sheet



brand

Hikvision
