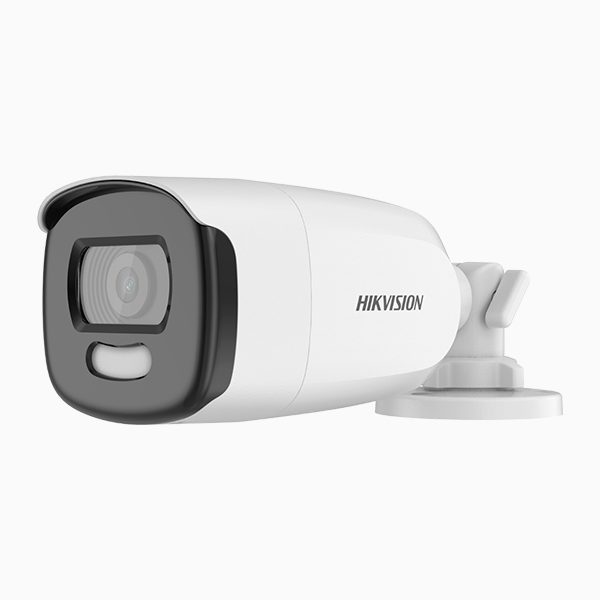

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F

5 MP ColorVu Fixed Bullet Camera

  • 5 MP full time color bullet camera
  • 24/7 full color imaging
  • Warm supplemental light with 40 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F



Hikvision 5 MP ColorVu Fixed Bullet Camera DS-2CE12HFT-F Specifications:

● 5 MP, 2560 × 1944 resolution
● 24-hour color image
● 130 dB true WDR, 3D DNR
● 3.6 mm, 6 mm fixed focal lens
● Smart Light, up to 40 m white light distance
● 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
● IP67

Camera

  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightColor
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
  • Signal SystemPAL/NTSC

Lens

  • Lens Type3.6 mm, 6 mm fixed lens
  • Focal Length & FOV80.1° (3.6 mm), 49.3° (6 mm)
  • Lens MountM16

Illuminator

  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 40m


  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
  • Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC, HLC
  • White BalanceAuto/Manual

Interface

  • Video OutputSwitchable TVI/AHD/CVI/CVBS

General

  • MaterialMetal
  • Dimension82.6 mm × 77.1 mm × 220.4 mm (3.25″ × 3.04″ × 8.68″)
  • Approx. 565 g (1.25 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power

    12 VDC ± 25%, Max. 4.9 W

    *You are recommended to use one power adapter to supply the power for one camera.

Approval

  • ProtectionIP67



The Data Sheet

For More Hikvision Products, Check Hikvision products Page.



brand

Hikvision
