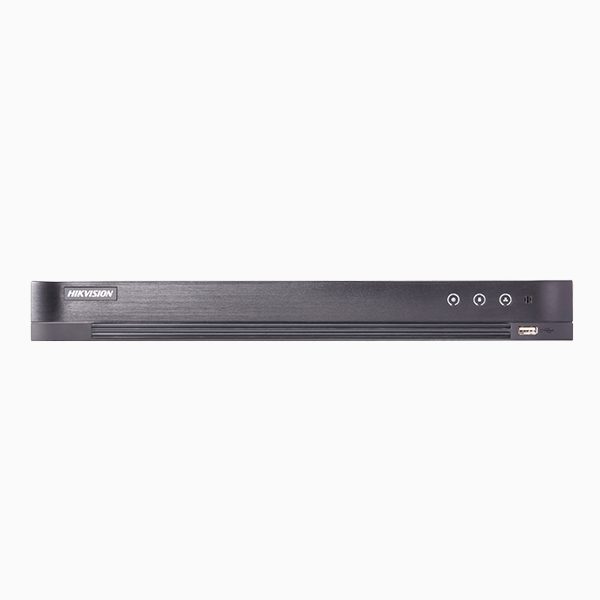

Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR DS-7216HQHI-K2

Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR DS-7216HQHI-K2

16-ch 1080p 1U H.265 TURBO HD DVR

  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 24 network cameras can be connected

Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR DS-7216HQHI-K2

Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR DS-7216HQHI-K2 Specifications:



Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
  • Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
  • Video Bit Rate32 Kbps to 6 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps

Video And Audio

  • IP Video Input8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback16-ch
  • HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
  • VGA/HDMI OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),

Network

  • Remote Connections128
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,

Auxiliary Interface

  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceFront panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
  • Serial InterfaceRS-485 (half-duplex)

General

  • Power Supply12 VDC
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Weights (Without HDD)≤ 2 kg (4.4 lb)
  • Consumption (Without HDD)≤ 25 W



Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR DataSheet
Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR Quick Start Guide
Hikvision 16-ch 1080p 1U H.265 TURBO HD DVR User Manual
