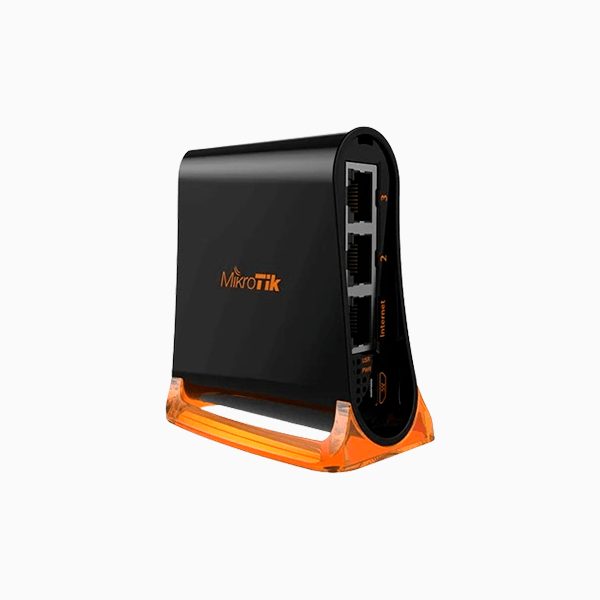

MikroTik hAP mini RB931-2nD
MikroTik hAP mini RB931-2nD Tiny size home 2.4Ghz AP with three LAN ports
The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports but can be reconfigured as desired, using the powerful RouterOS configuration options.
The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point – it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.
Specifications
Details | |
Product code | RB931-2nD |
Architecture | SMIPS |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 48 x 78 x 81mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 32 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -20°C to 70°C |
Wireless capabilities
Details | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
10/100 Ethernet ports | 3 |
Powering
Details | |
MicroUSB input Voltage | 5-5 V |
Number of DC inputs | 1 (MicroUSB) |
Max power consumption | 3.5 W |
Cooling type | Passive |
Certification & Approvals
Details | |
Certification | FCC, IC |
IP | IP20 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
