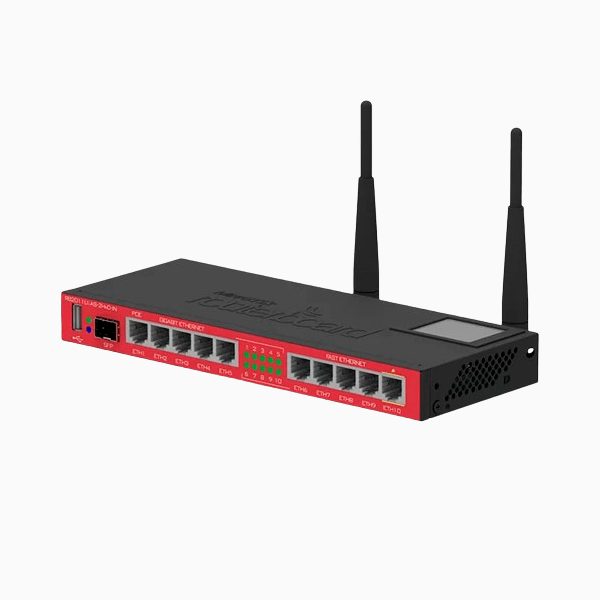

MikroTik RB2011UiAS-2HnD-IN
MikroTik RB2011UiAS-2HnD-IN 2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM
The RB2011Ui is a low-cost multi-port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, and monitoring – are just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-2HnD has the most features and interfaces of all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports, and SFP cage (SFP module not included!). Also, it features a powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port, and RouterOS L5 license, as well as a desktop case with power supply, two 4dBi Omni antennas, and LCD panel- all this for only $129!
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D, and S-35/53LC20D (not included)
RouterBOARD 2011UAS-2HnD-IN comes with a desktop enclosure, LCD panel, and power supply.
A Wall mount kit (product code RBWMK) for the network closet is available for purchase as an optional accessory.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), which means you can power another device just by connecting it over a regular Ethernet cable
Specifications
Details | |
Product code | RB2011UiAS-2HnD-IN |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 214mm x 86mm for PCB |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -40°C to 60°C |
Wireless capabilities
Details | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 4 |
Wireless 2.4 GHz chip model | AR9344 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
10/100 Ethernet ports | 5 |
10/100/1000 Ethernet ports | 5 |
Fiber
Details | |
SFP DDMI | Yes |
SFP ports | 1 |
Peripherals
Details | |
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering
Details | |
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 8-30 V |
Max power consumption | 11 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 8-30 V |
PoE-out
Details | |
PoE-out ports | Ether10 |
PoE out | Passive PoE |
Max out per port output (input 18-30 V) | 510 mA |
Max total out (A) | 510 mA |
Certification & Approvals
Details | |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Other
Details | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 30 | -96 |
11MBit/s | 28 | -80 |
6MBit/s | 30 | -96 |
54MBit/s | 27 | -80 |
MCS0 | 30 | -92 |
MCS7 | 25 | -73 |
